CARD EDGE

Material

  • Housing: Glass filled PBT UL94V-0
  • Contacts: Brass or Phosphor Bronze
  • Plating: Contact Gold and Dip Tin over Nickel

Electrical

  • Current Rating: 2 AMP
  • Insulator Resistance: 1000M Ohm min. At DC 500V DC
  • Contact Resistance: 30m Ohm max. At DC 100mA
  • Withstanding Voltage: 1000V AC / rms 50Hz for 1 minute
  • Operating Temperature: -45ºC~+105ºC

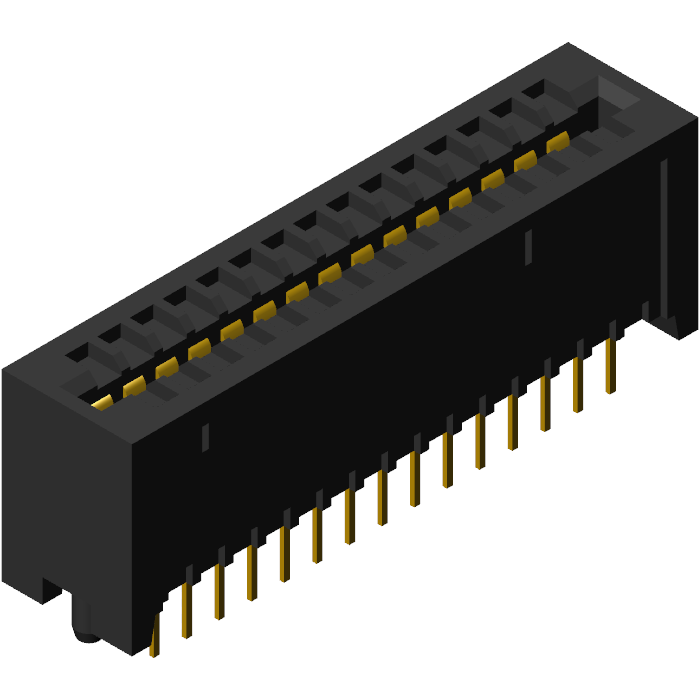

PCB STRAIGHT - pitch 2,54

PCB STRAIGHT - pitch 2,54

Datasheets:

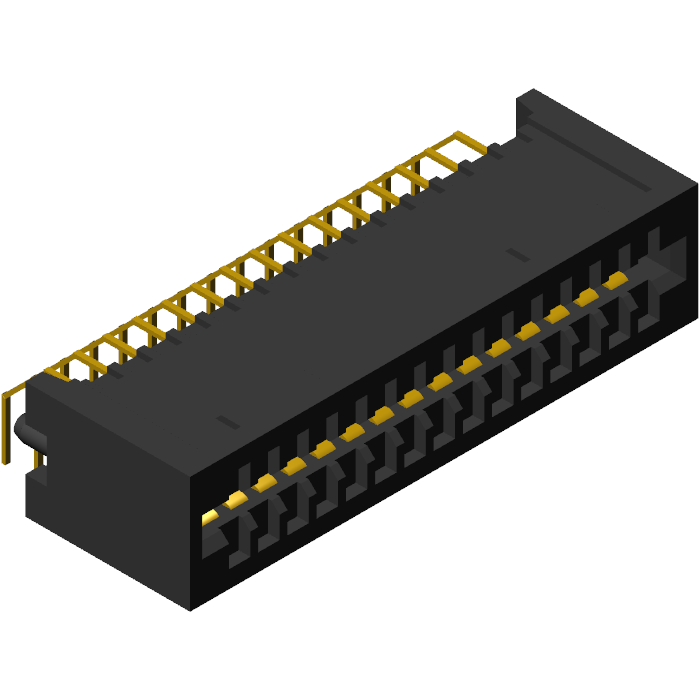

PCB RIGHT ANGLE - pitch 2,54

PCB RIGHT ANGLE - pitch 2,54

Datasheets:

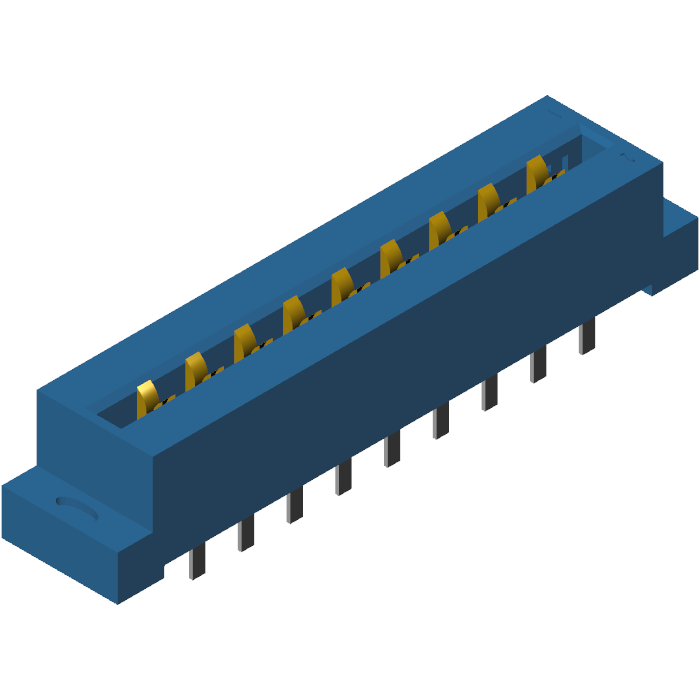

PCB STRAIGHT - pitch 3,96

PCB STRAIGHT - pitch 3,96

SOLDER - pitch 3,96

SOLDER - pitch 3,96

Datasheets:
