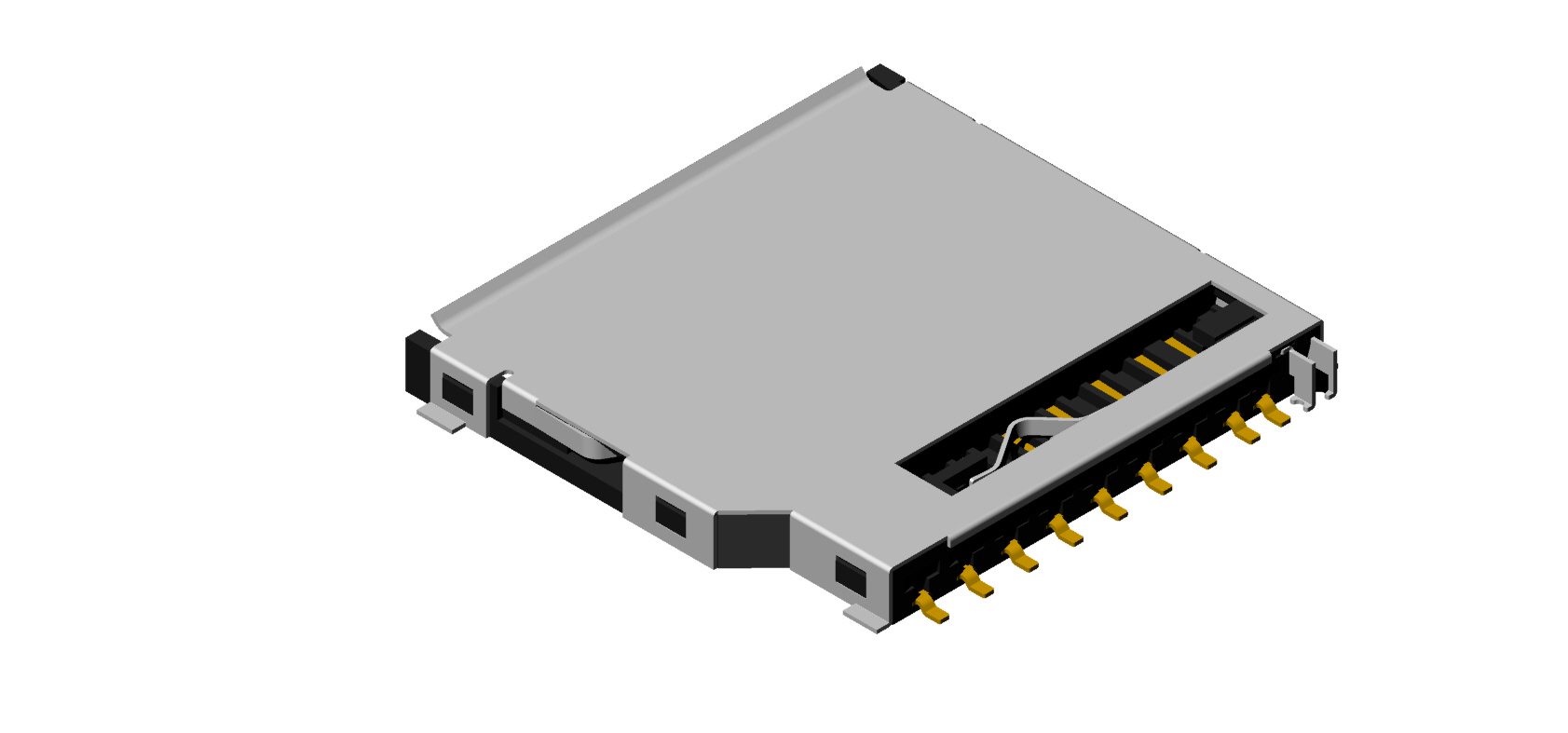

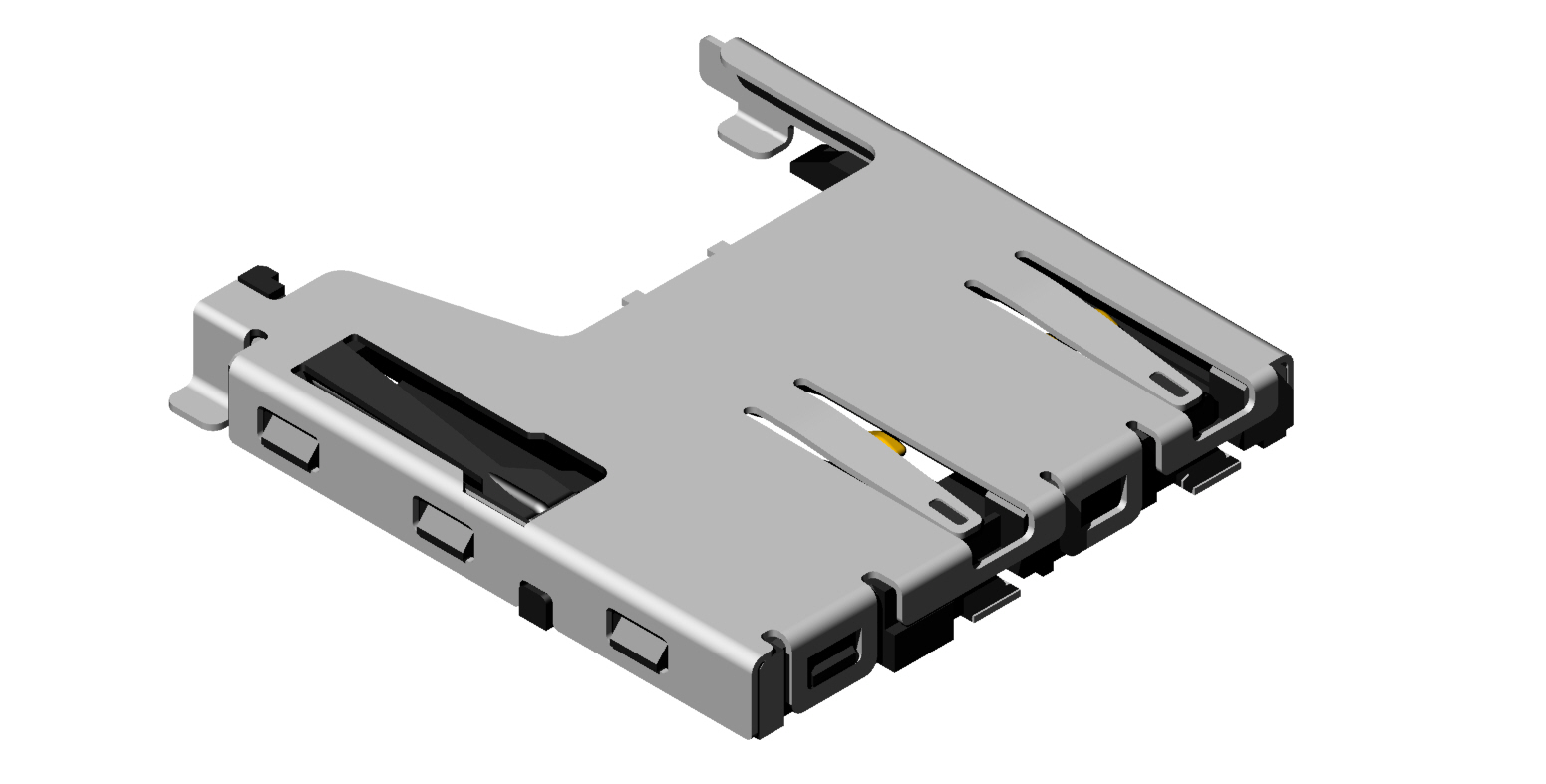

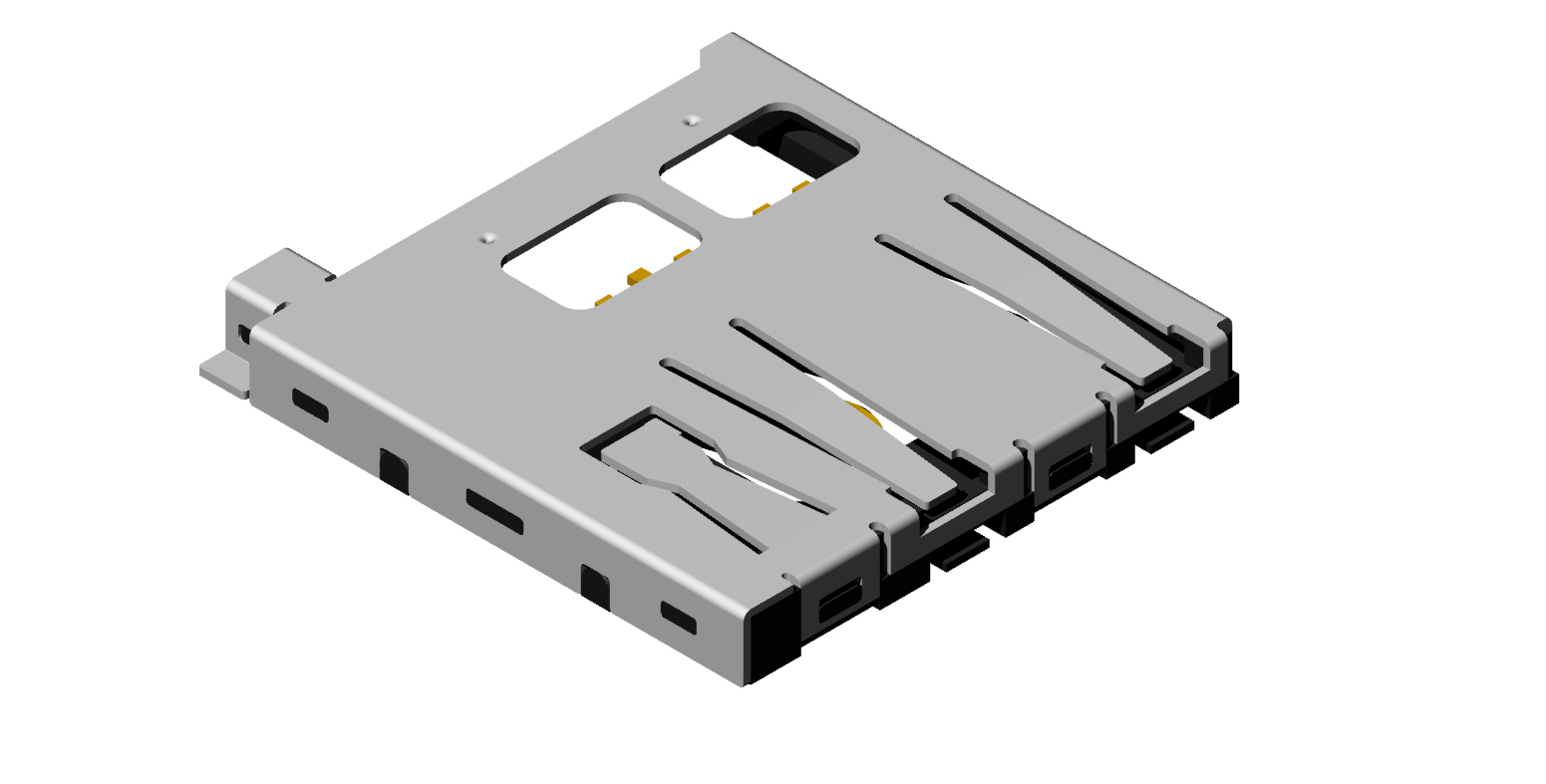

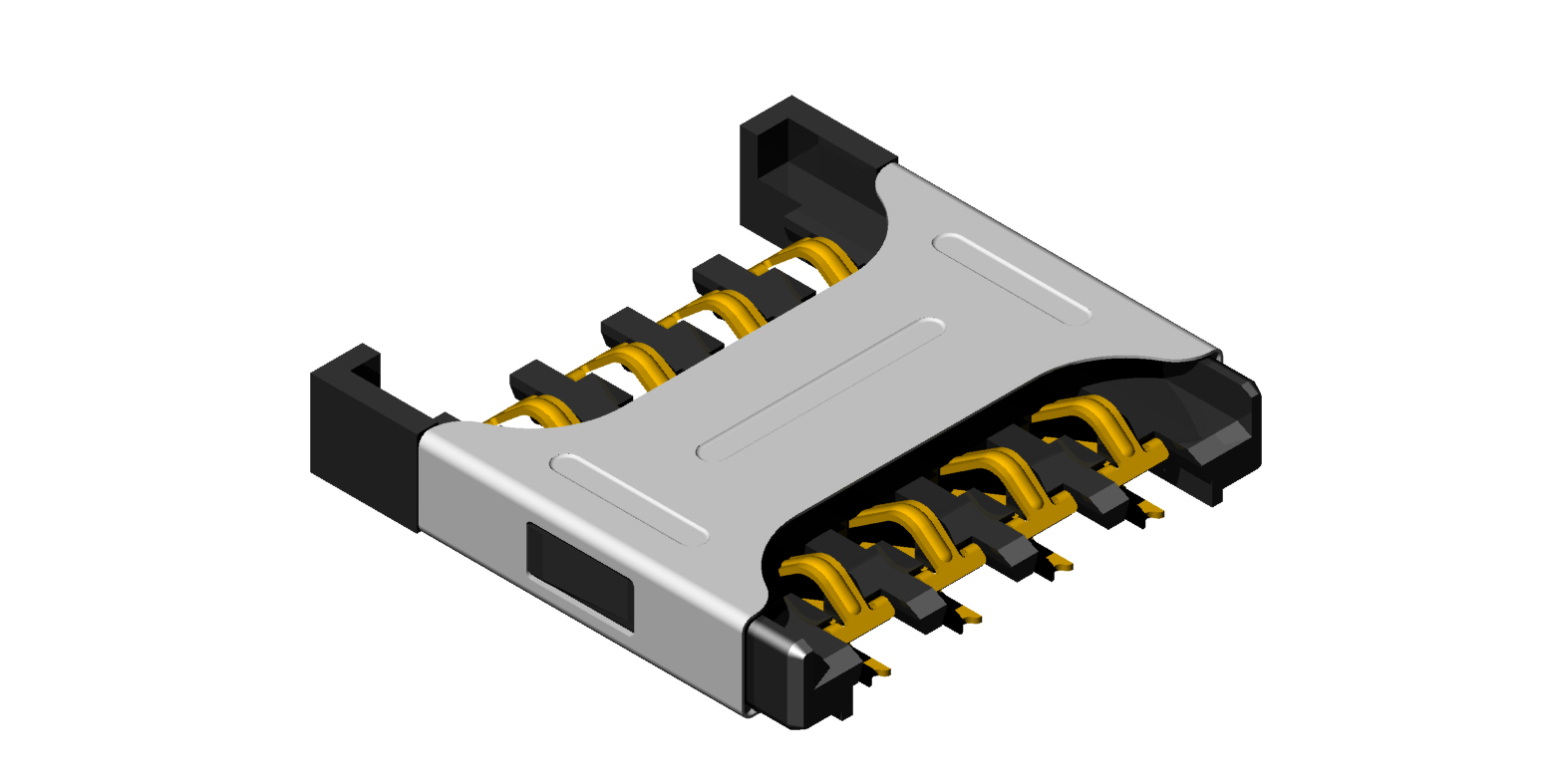

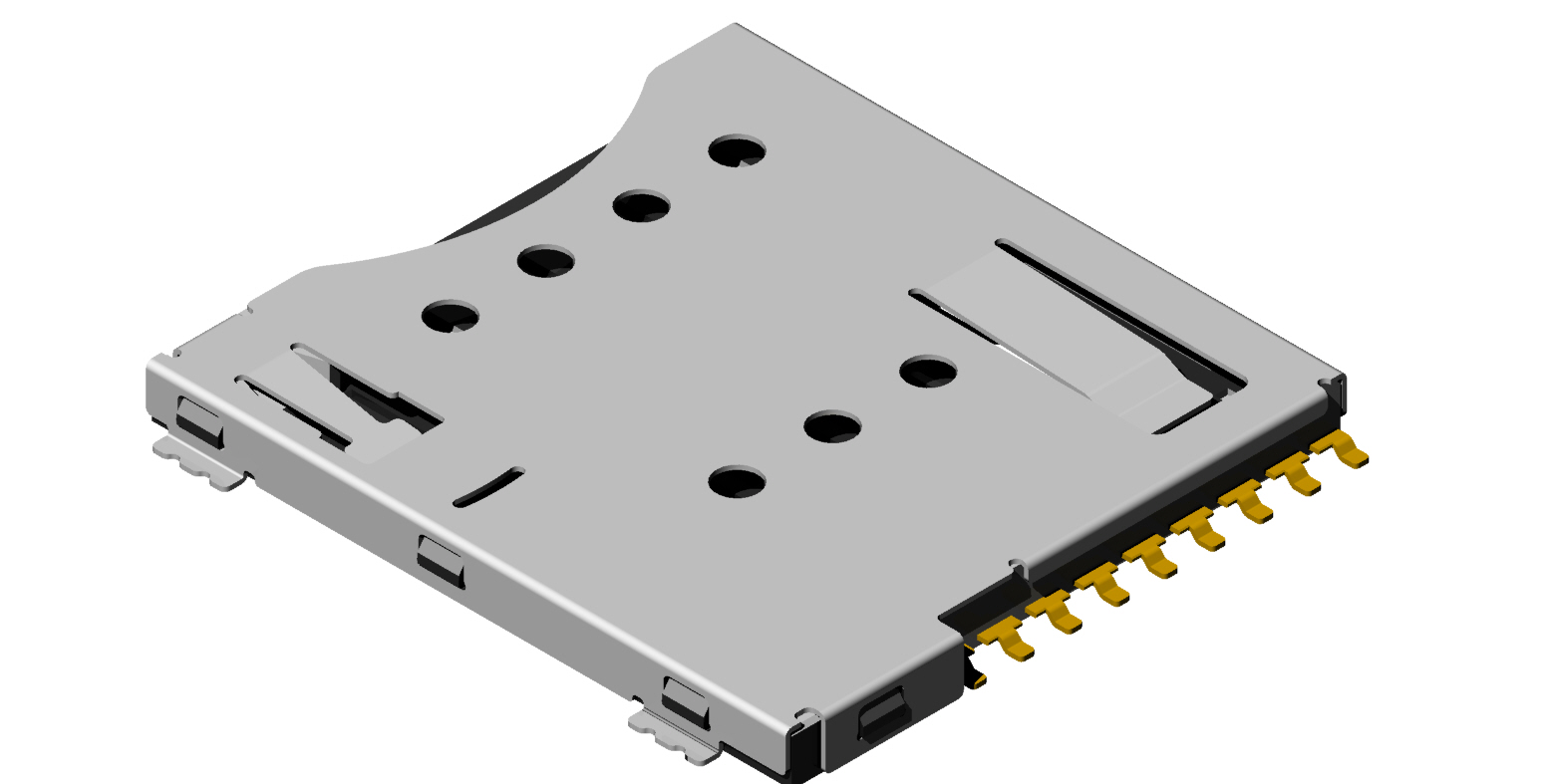

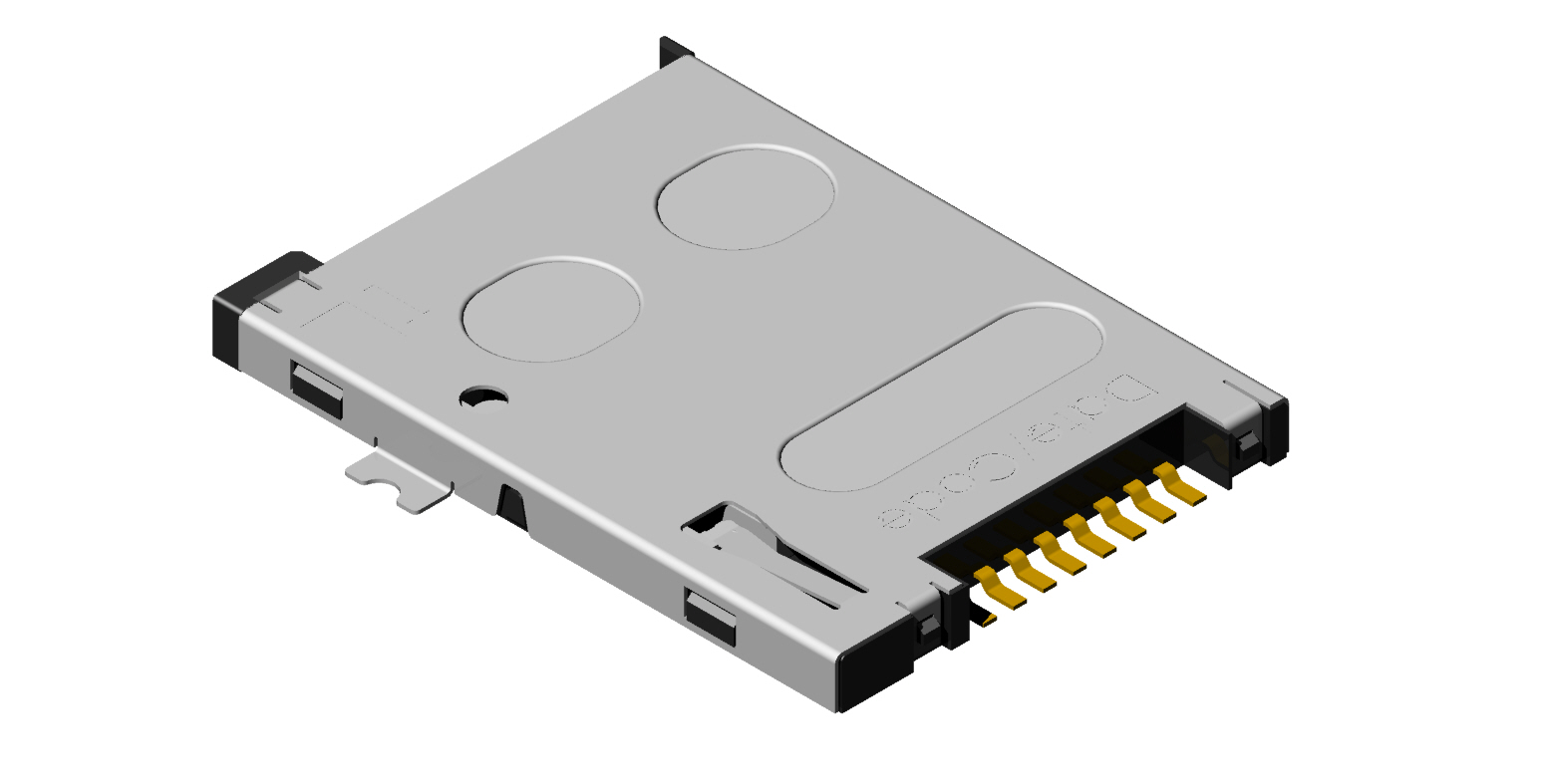

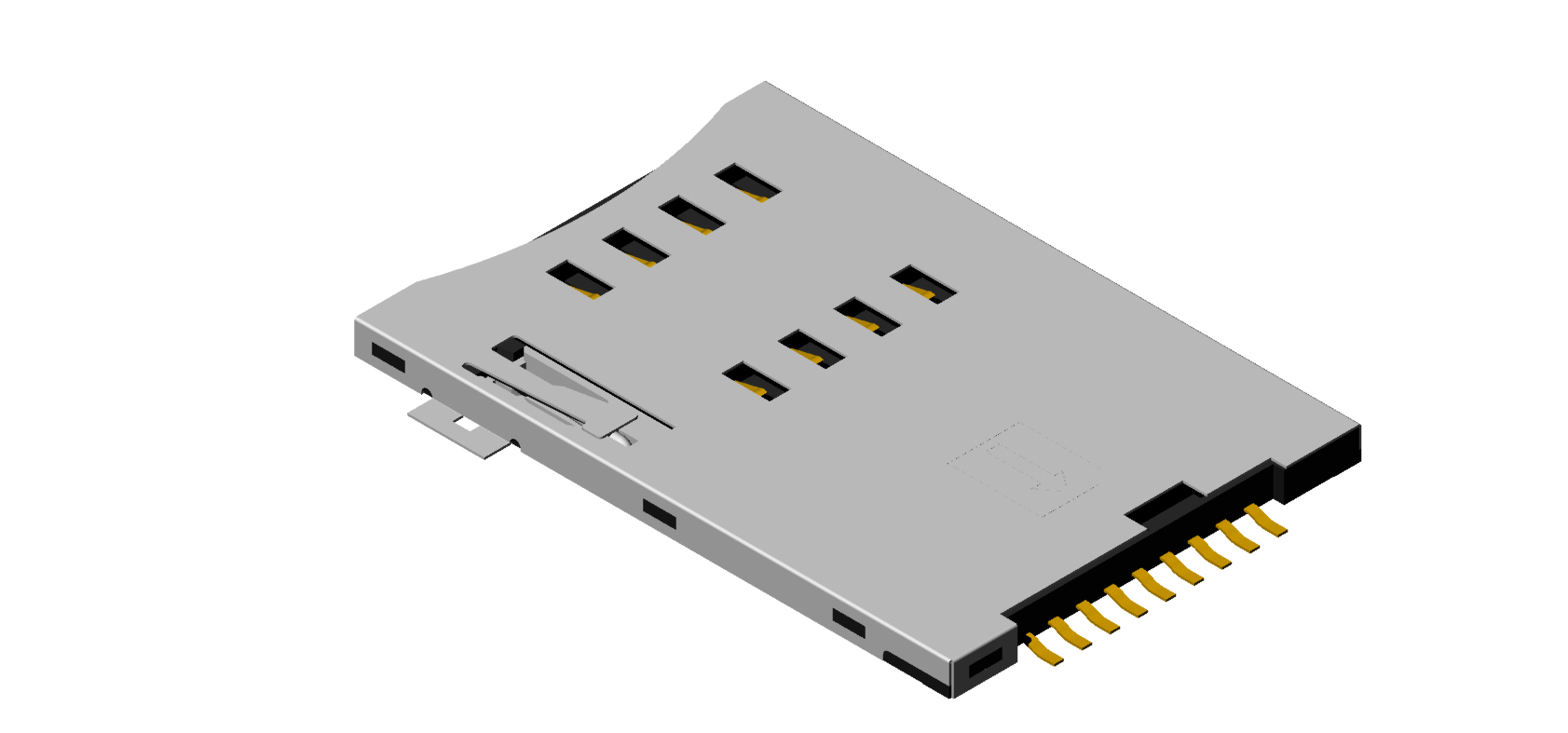

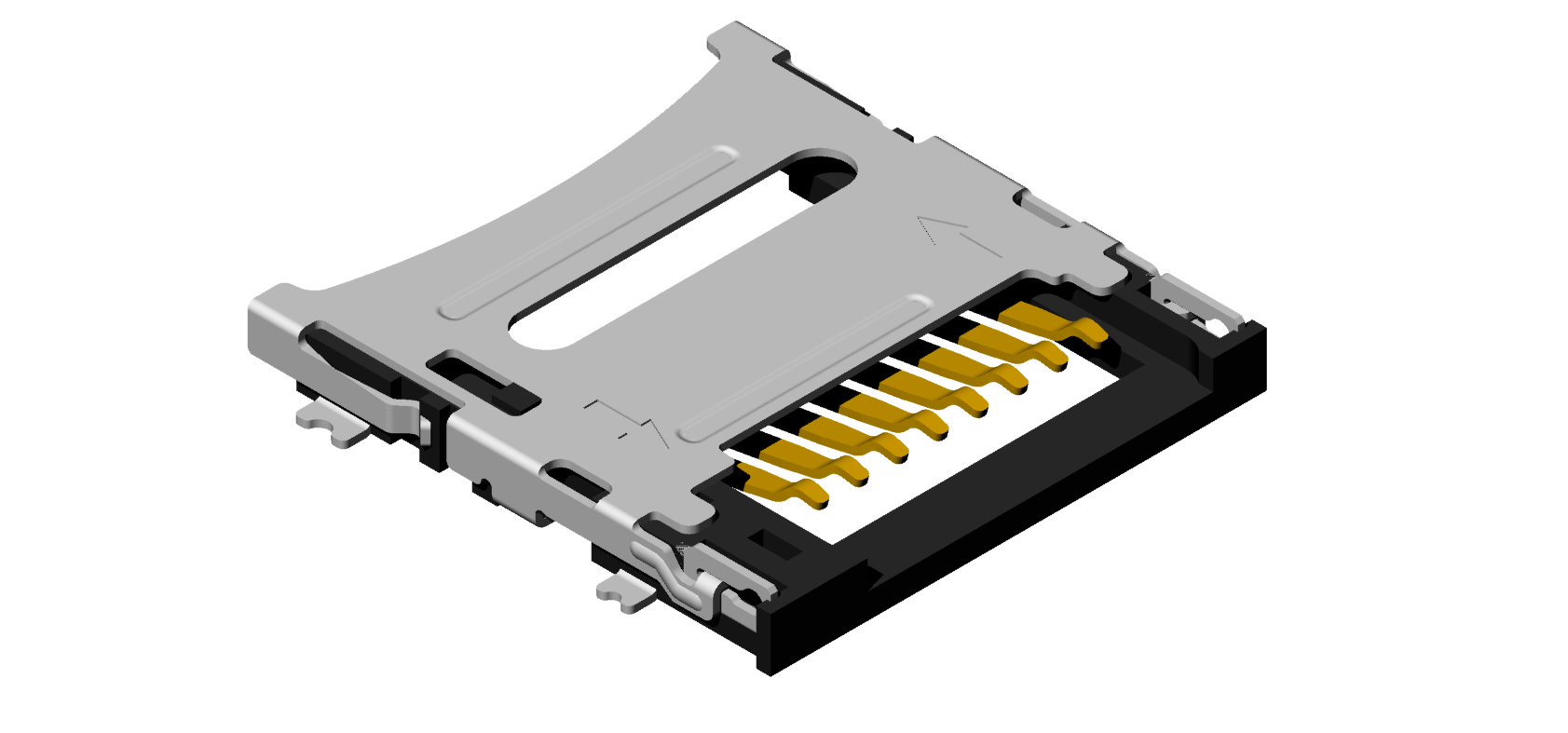

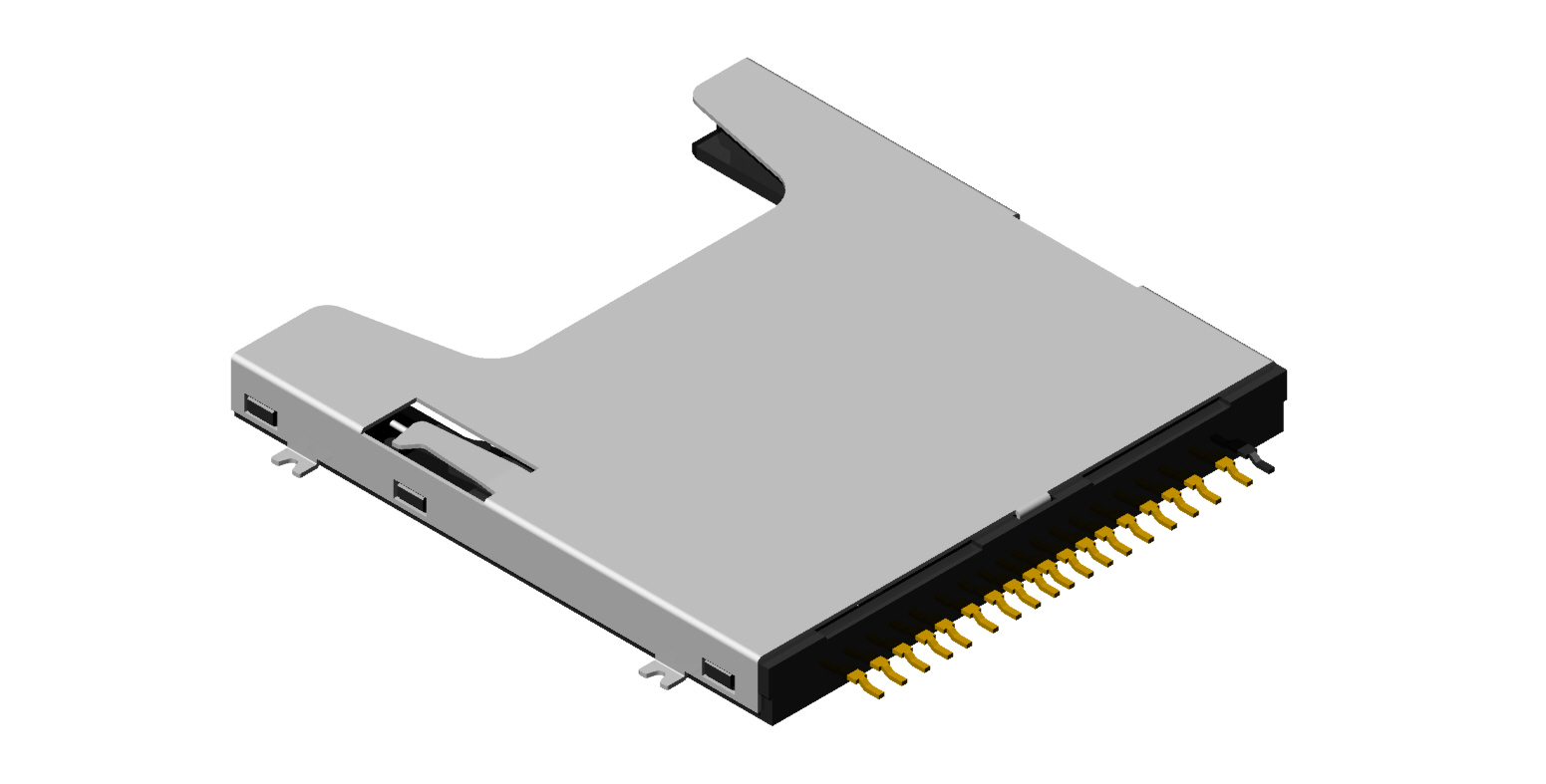

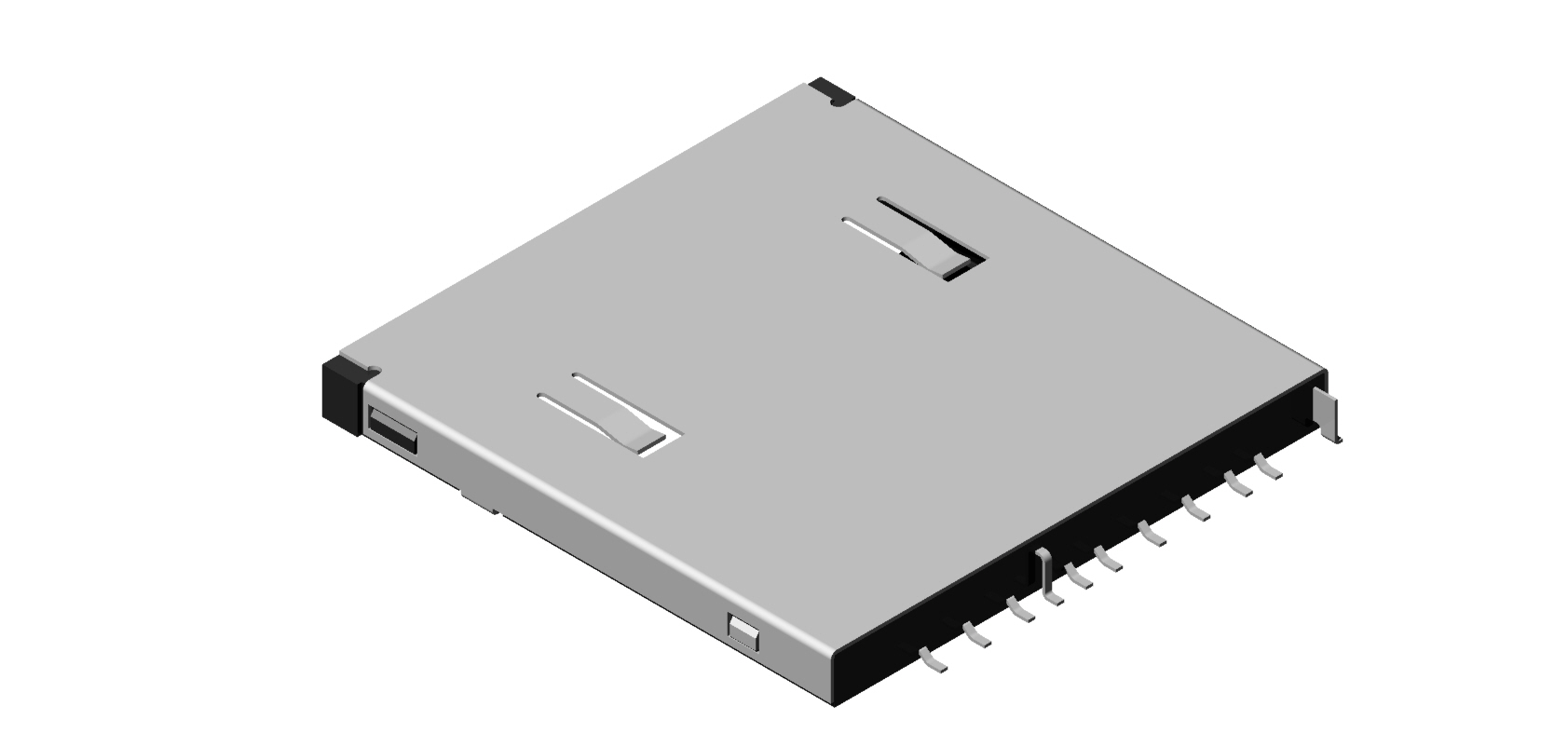

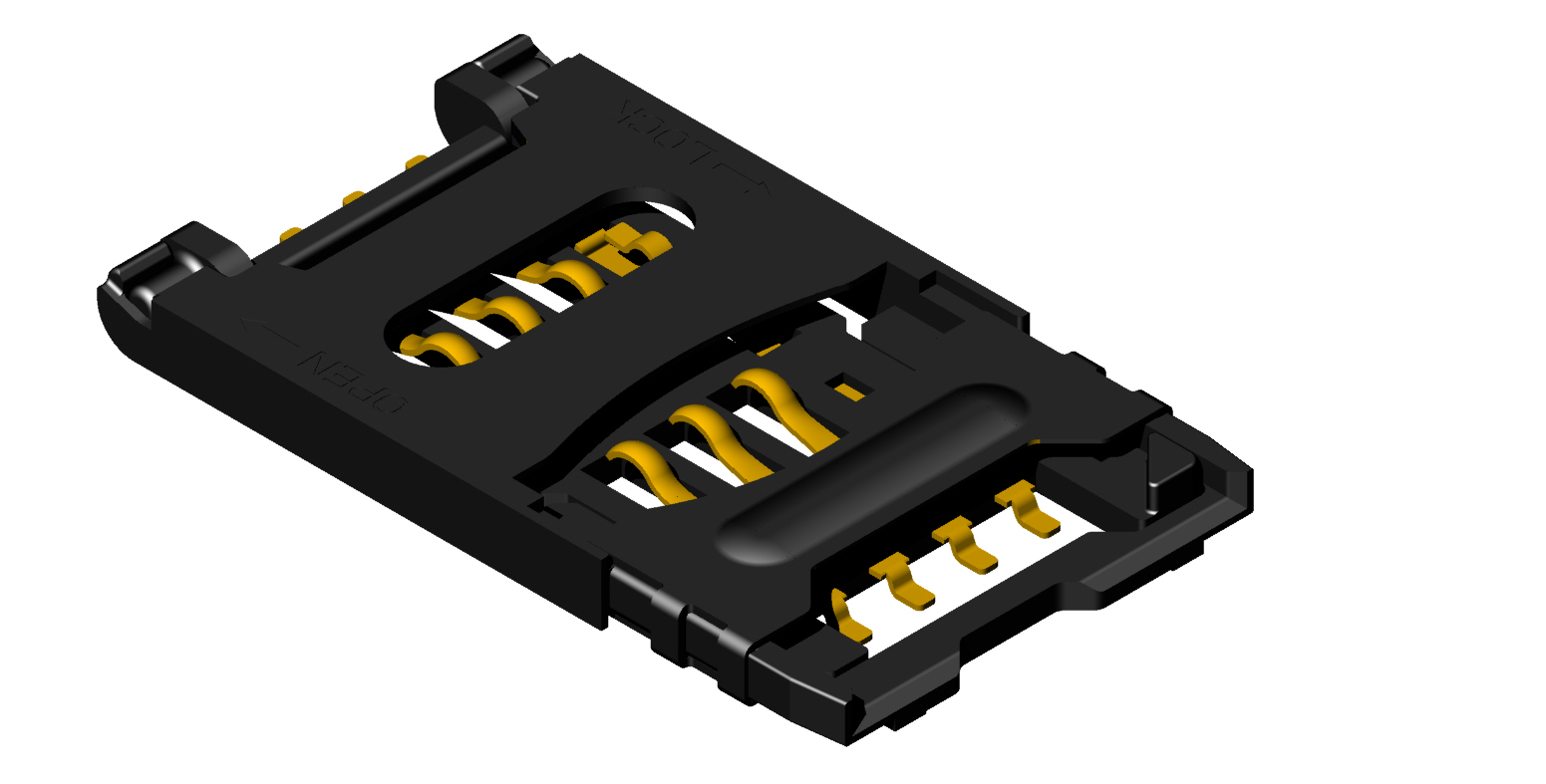

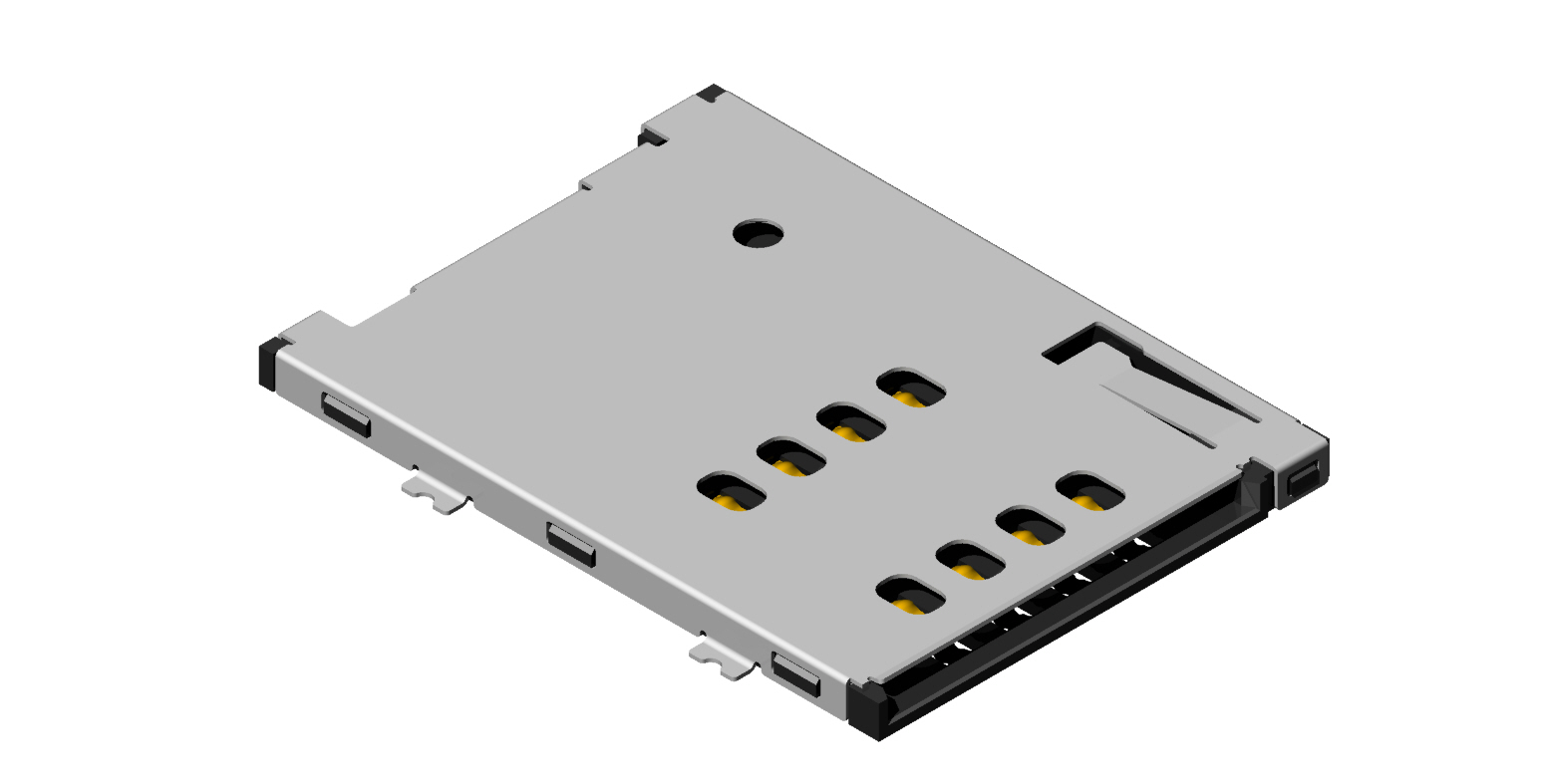

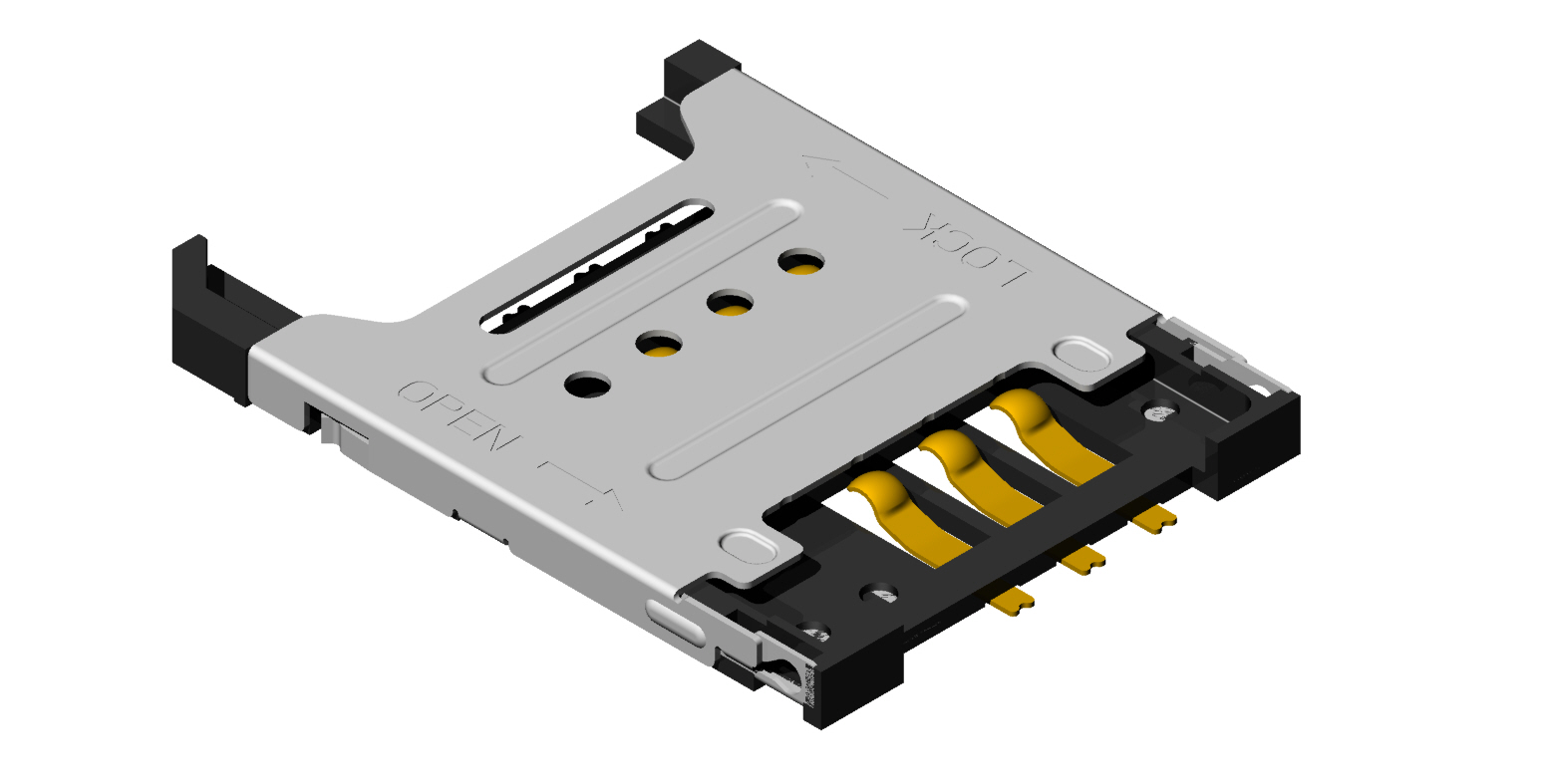

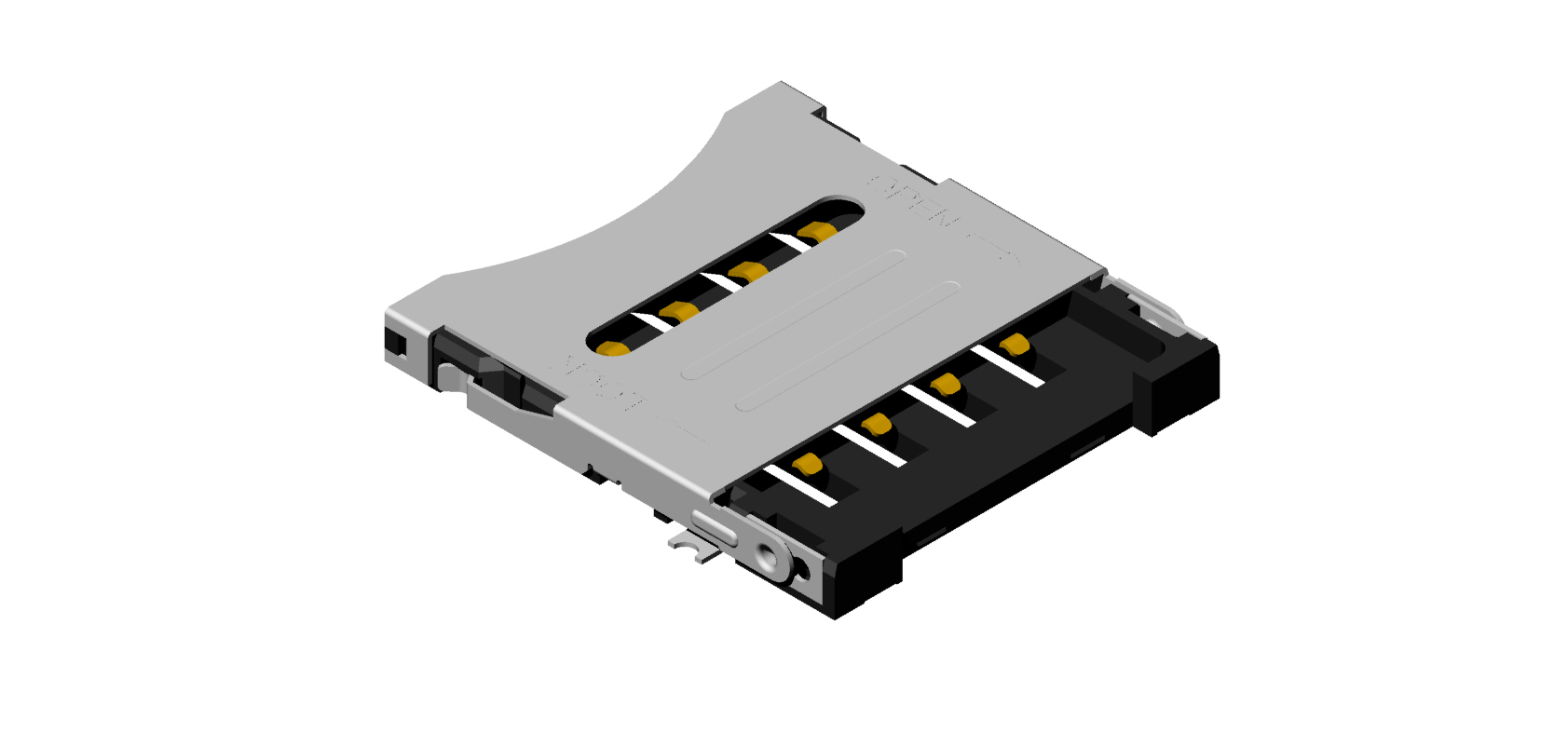

SOCKED CARD CONNECTORS
- Housing: high temperature
- Termoplastic, UL94V-0, Black
- Contact: Copper Alloy
- Shell: Stainless Steel, Nickel
- Slider: high temperature
- Termoplastic, UL94V-0, Black
- Lever: Stainless Steel, Nickel
- Spring: Pianowire, Nickle
- Plating:
-underplate: Nickel
-contact Area: Gold over Nickel
-solder area: Tin over Nickel
Electrical
- Rated Current: 0.75 AMP
- Contact Resistance: 30mΩ Max
- Withstand Voltage: 500V AC/DC
- lnsulation Resistance: 1.000MΩ Min
- Operation temperature: - 40°C to + 105°C
