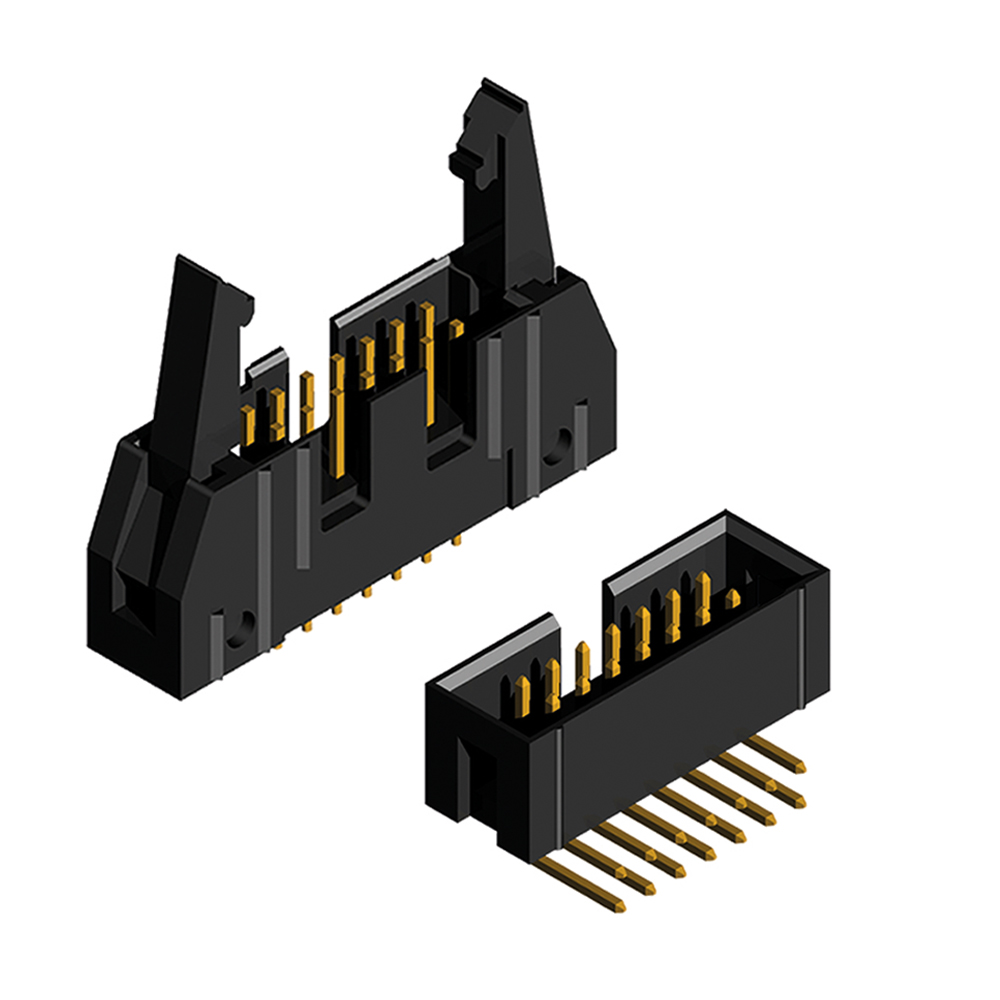

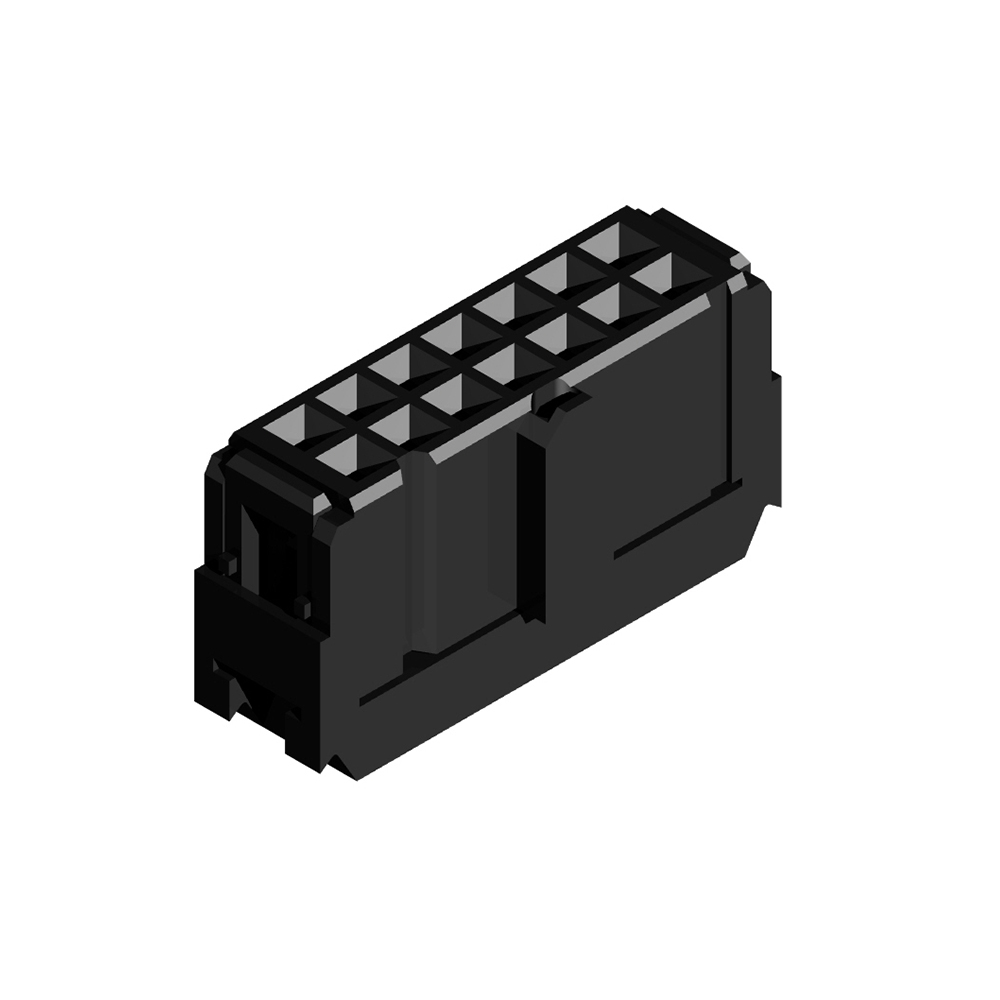

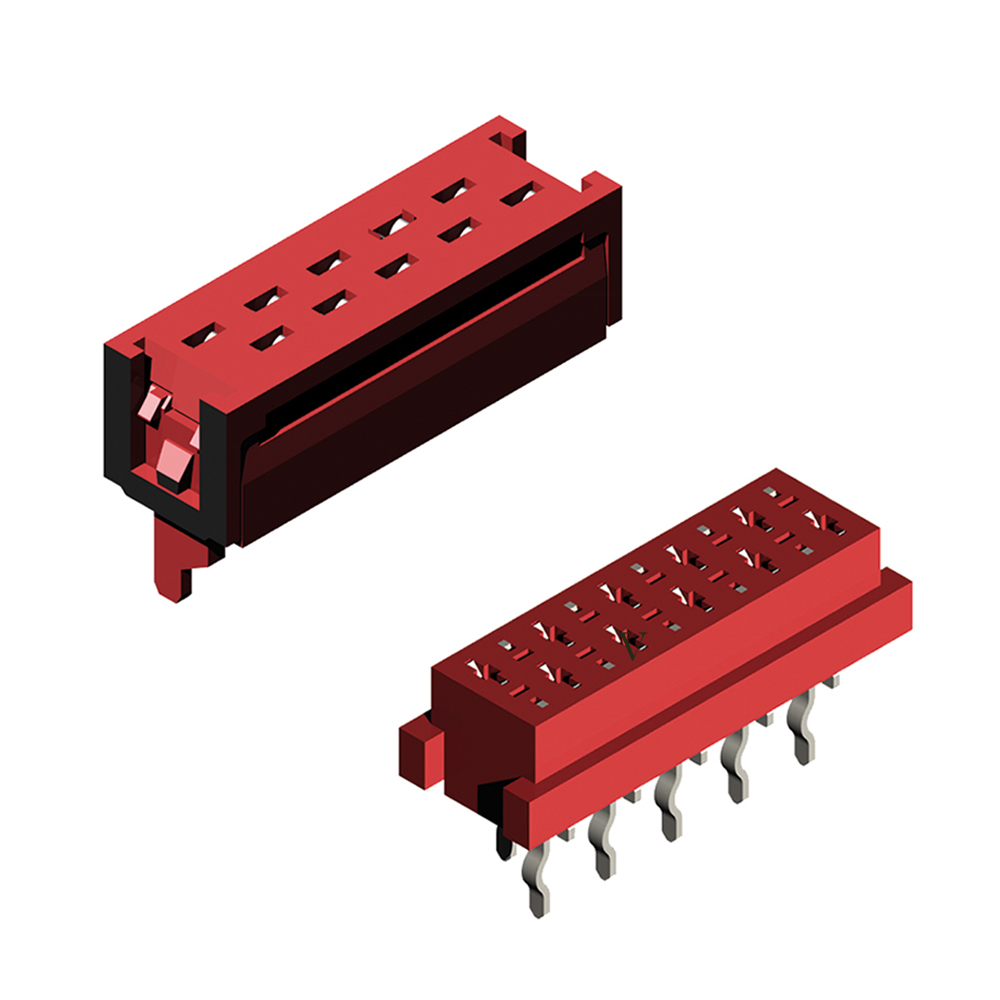

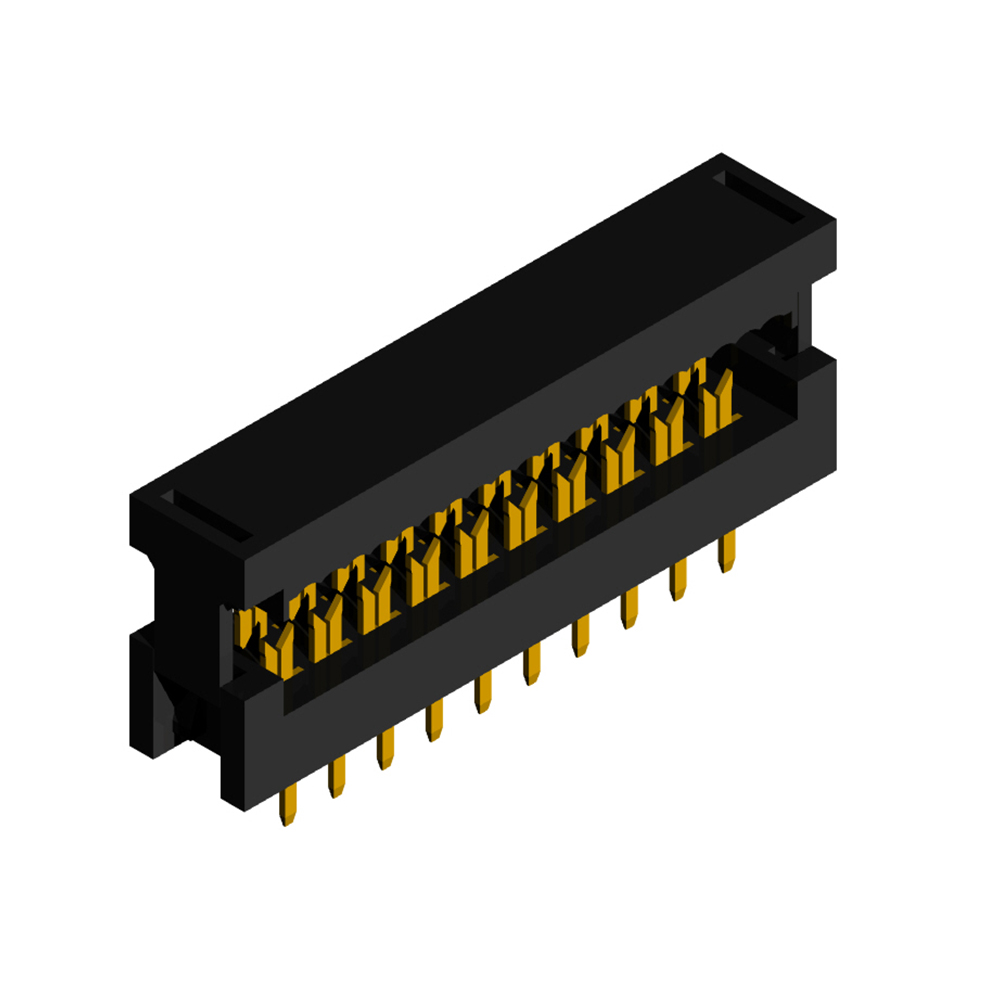

IDC SYSTEM

Material

  • Housing: 30% Glass filled PBT UL94V-0
  • Contact: Brass or Phosphor Bronze
  • Plating: Selective Gold Plated on mating area and nickel plated on wire cutting area
  • Gold Plated: 3u” over 50u” nickel
  • Cable: 1.27mm (0.050”) pitch flat cable

Electrical

  • Current Rating: 3 AMP
  • Contact Resistance: 20m Ω max at DC 100mA
  • Insulation Resistance: 5000M Ω
  • Operating Temperature: -45 °C to +105 °C

Features

  • Optional polarizing key, polarizing bump
  • Optional strain relief
