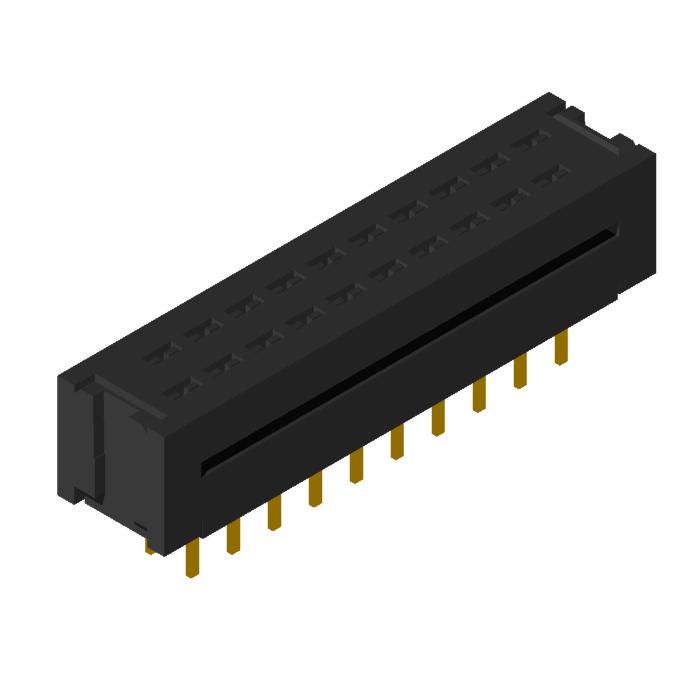

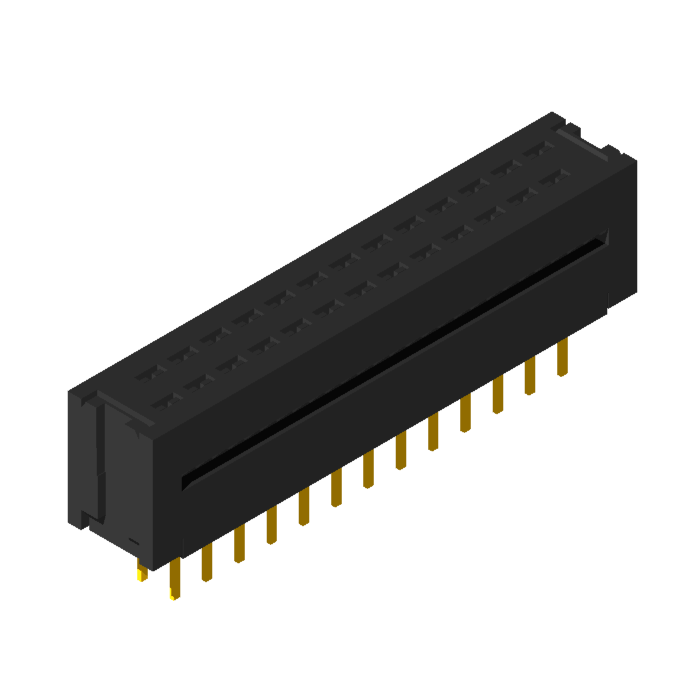

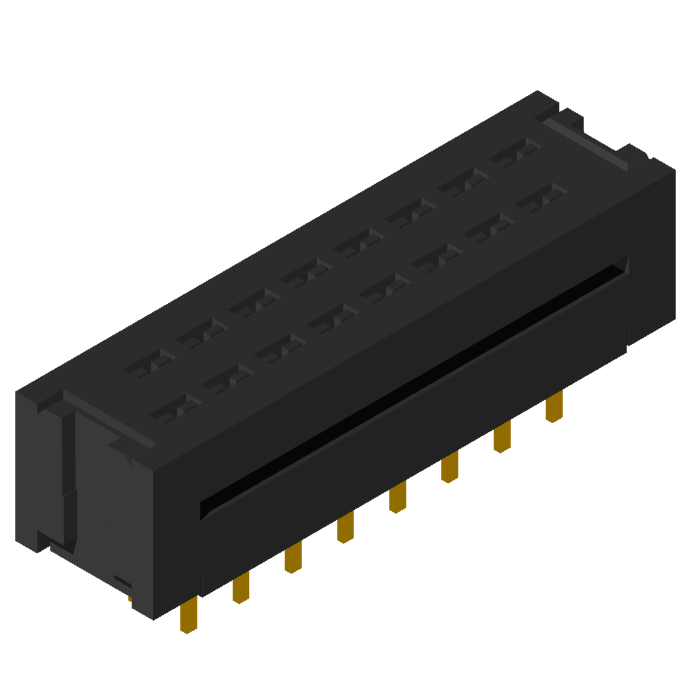

IDP PLUG
Material
- Housing: 30% Glass filled PBT UL94V-0
- Contact: Brass or Phosphor Bronze
- Plating: Selective Gold Plated on mating area and nickel plated on wire cutting area
- Gold Plated: 3u” over 50u” nickel
- Cable: 1.27mm (0.050”) pitch flat cable
Electrical
- Current Rating: 3 AMP
- Contact Resistance: 20m Ω max at DC 100mA
- Insulation Resistance: 5000M Ω
- Operating Temperature: -45 °C to +105 °C
Features
- Optional polarizing key, polarizing bump
- Optional strain relief
