IC-SOCKETS

Material

  • Insulator : Black Glass filled polyester PBT-GF30-FR
  • Flammability : UL94V-0
  • Sleeve : Brass
  • Contact Clip (4/6 finger) : Beryllium copper (C17200)
  • Accepted Pin : Ø 0.40 to 0.56 mm
  • Forces : (polished steel gauge Ø 0.43mm)
  • Insertion : 2 N typ
  • Withdrawal : 1 N typ
  • Mechanical life : min100 cycles
  • Rated Current : 1A
  • Contact Resistance : Max 10MΩ
  • Dielectric Resistance : 1000 MΩ Min
  • Operation Temperature : - 40 °C to + 105 °C

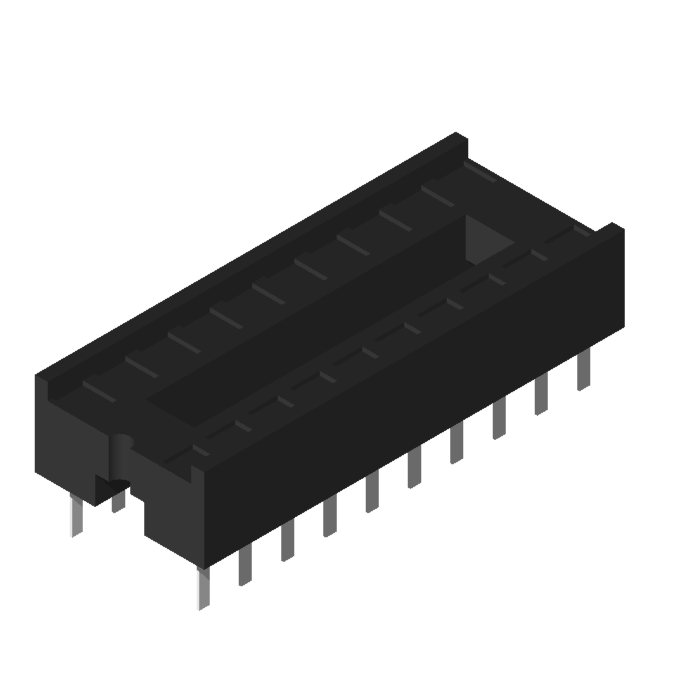

SPRING PIN

SPRING PIN

Datasheets:

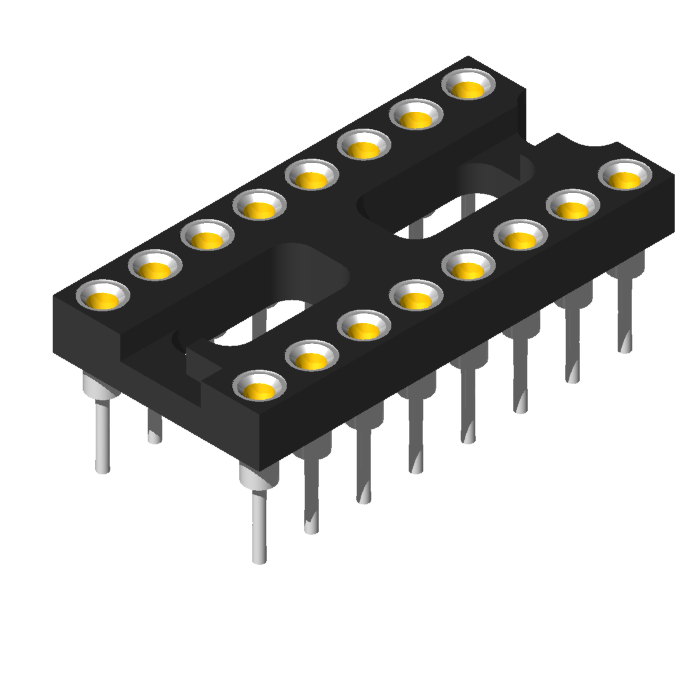

MACHINE PIN

MACHINE PIN

Datasheets:

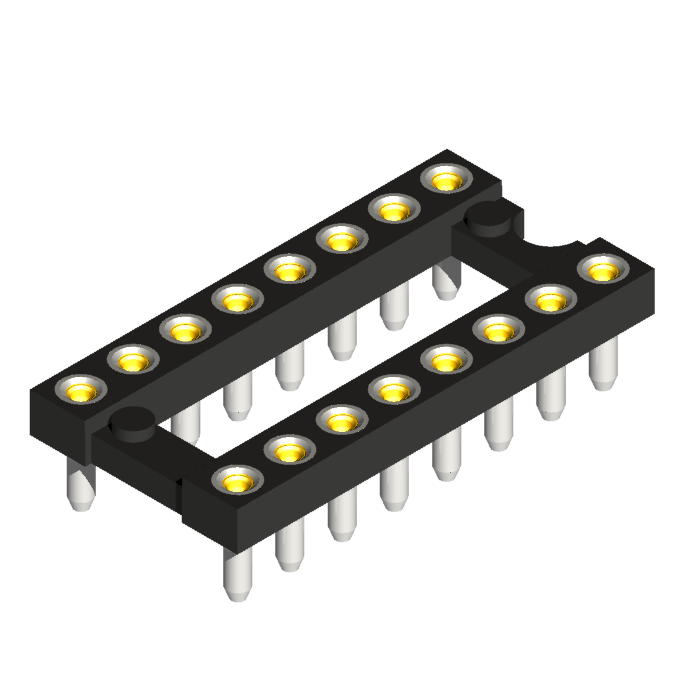

MACHINE PIN - LOW PROFILE

MACHINE PIN - LOW PROFILE

Datasheets:

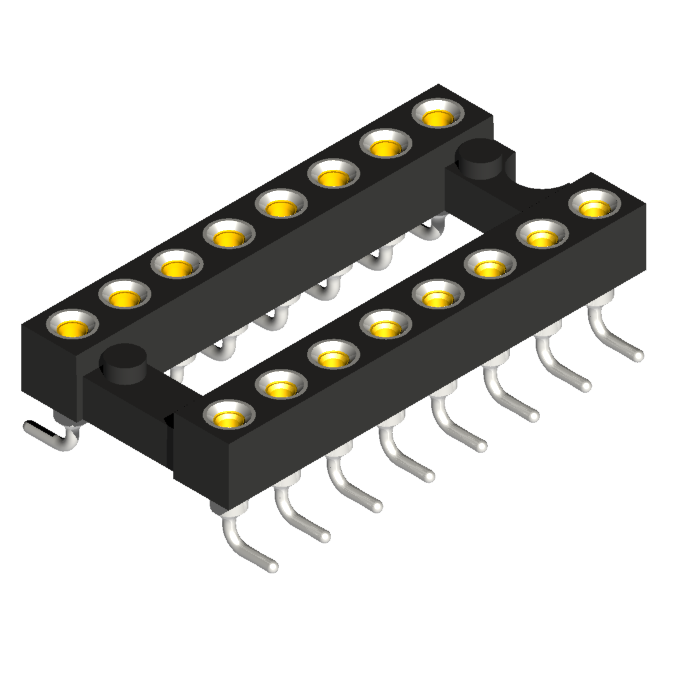

SMT MACHINE PIN

SMT MACHINE PIN

Datasheets:

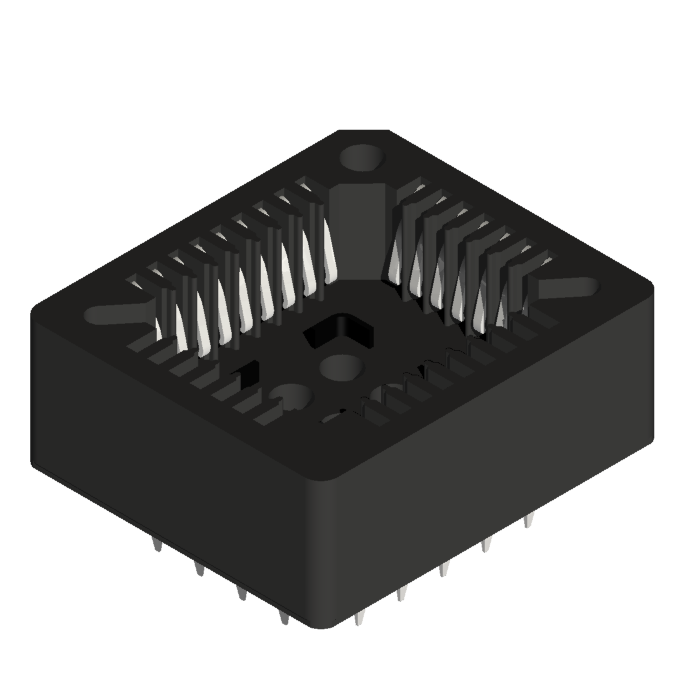

THT CARRIER

THT CARRIER

Datasheets:

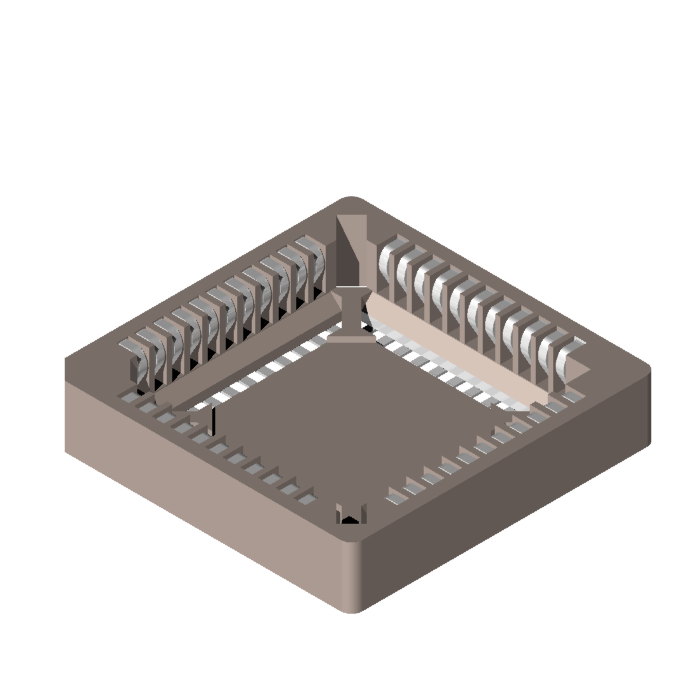

SMT CARRIER

SMT CARRIER

Datasheets:
