E-SEAL

Material

  • Pin (outer sleeve): Brass
  • Clip (contact 4/6 finger): Beryllium Copper, Heat treated
  • Tin Plated: 1.25u”m / 50u” nickel, 5u”m / 200 u” Tin
  • Gold Plated: 1.25 u”m / 50 u”m nickel, Full Gold Plating Clip (contact): 1.25 u”m / 50 u”m Nickel, Gold or Tin Plating
  • Insulator Body (black): Glass filled thermoplastic polyester UL94V-0

Electrical

  • Current Rating: 3 AMPs / Contact Max.
  • Contact Resistance: 10m Ω / Contact
  • Insulation Resistance: 1000m at 100 V
  • Operating Voltage: 60 AC DC

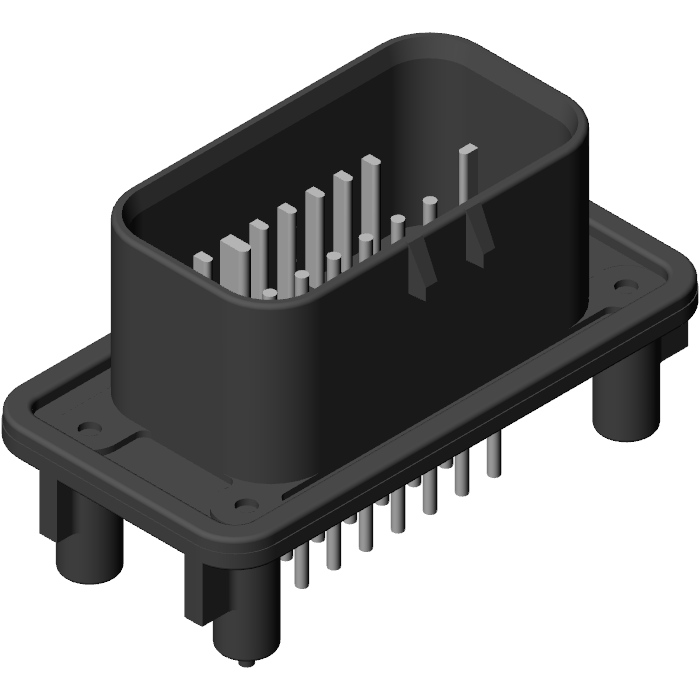

23 Pos STRAIGHT PCB

23 Pos STRAIGHT PCB

Datasheets:

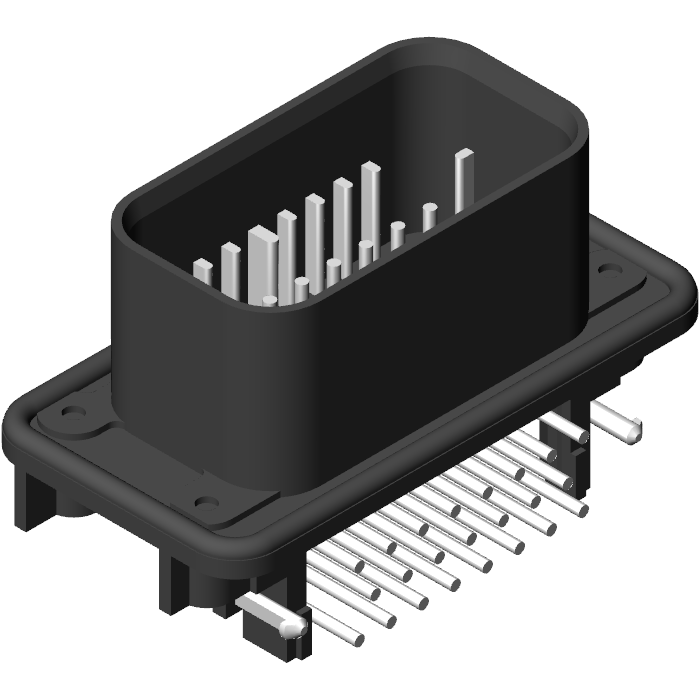

23 Pos RIGHT ANGLE  PCB

23 Pos RIGHT ANGLE PCB

Datasheets:

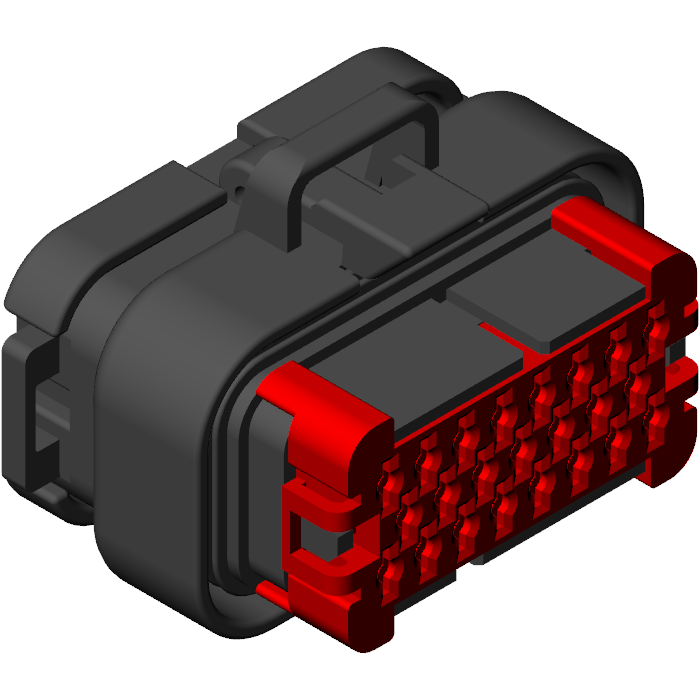

23 Pos HOUSING

23 Pos HOUSING

Datasheets:

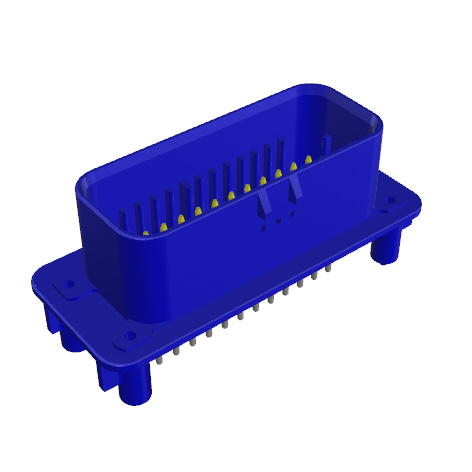

35 Pos STRAIGHT PCB

35 Pos STRAIGHT PCB

Datasheets:

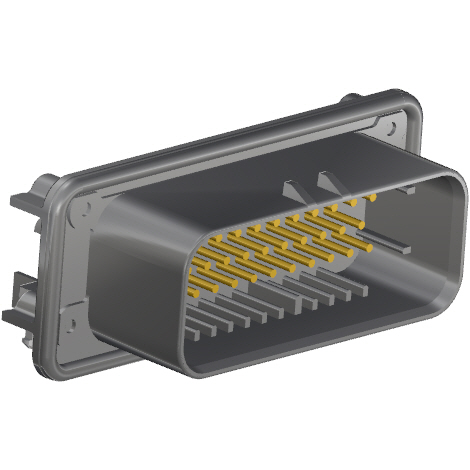

35 Pos RIGHT ANGLE PCB

35 Pos RIGHT ANGLE PCB

Datasheets:

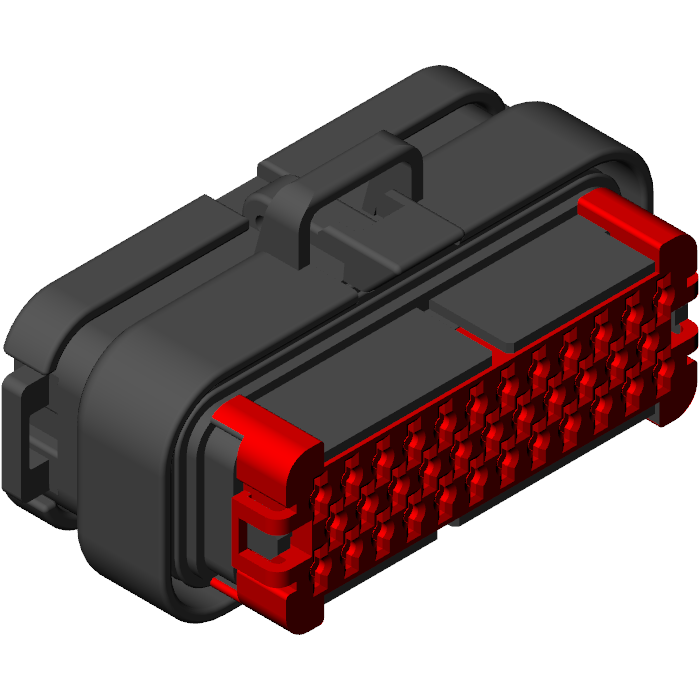

23 Pos HOUSING

23 Pos HOUSING

Datasheets:
