B TYPE

Material

  • Insulator: Glass - filled thermoplastic PBT UL64V-0
  • Contacts: Male Brass / Female - Phosphor Bronze
  • Plating: Full gold or selected gold in mating area

Electrical

  • Current Rating: 2 AMP
  • Contact Resistance: 30 mΩ Max Insulator
  • Operating Temperature: - 55 °C ~ + 105 °C
  • Insulation Resistance: 1000MΩ Min at DC 500V DC
  • Withstanding Voltage: 1000V AC for 1 minute
  • Voltage Rating : 250 VAC
EC612-2XXXFD

EC612-2XXXFD

DIN 41612 - B TYPE -MALE - 2 x32 POSITIONS - STRAIGHT - THT

Datasheets:
EC612-2XXXMR

EC612-2XXXMR

DIN 41612 - B TYPE -MALE - 2 x32 POSITIONS - RIGHT ANGLE - THT

Datasheets:

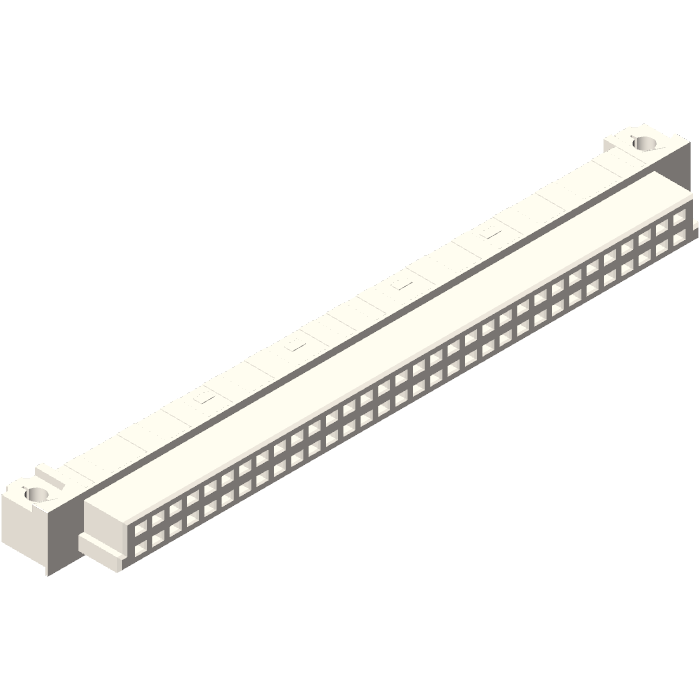

EC612-2XXXFR

EC612-2XXXFR

DIN 41612 - B TYPE -FEMALE - 2 x32 POSITIONS - RIGHT ANGLE - THT

Datasheets:

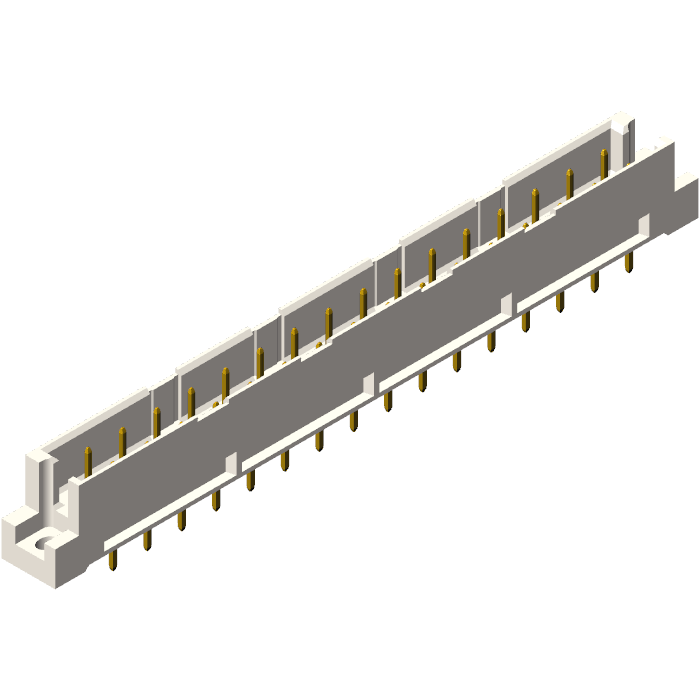

EC612-2XXXD

EC612-2XXXD

DIN 41612 - B TYPE -MALE - 2 x32 POSITIONS - STRAIGHT - THT

Datasheets:
