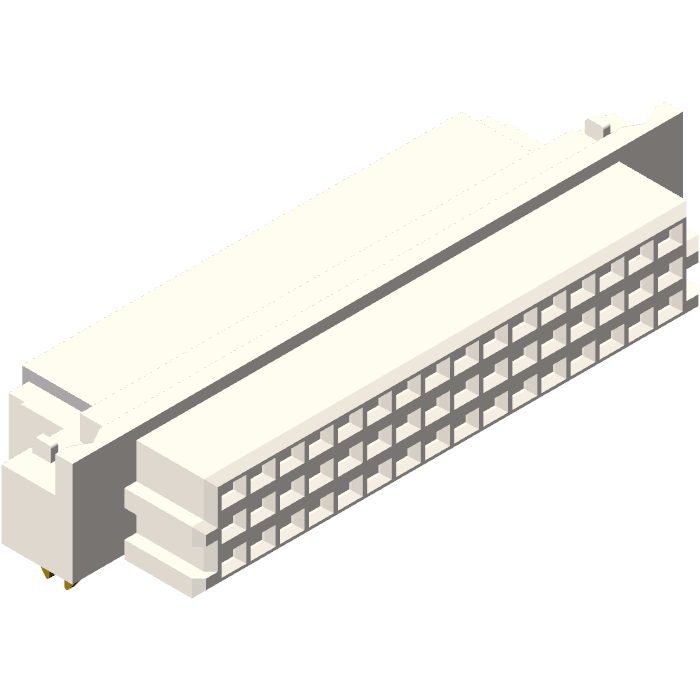

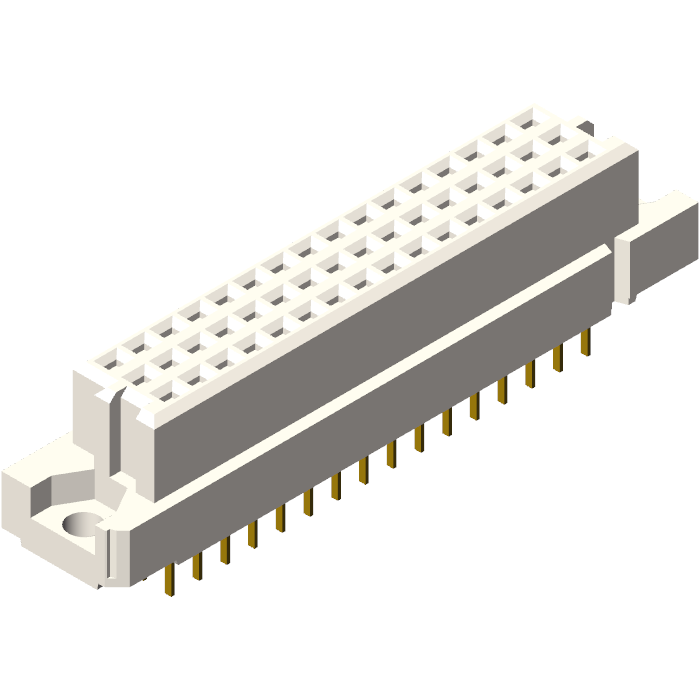

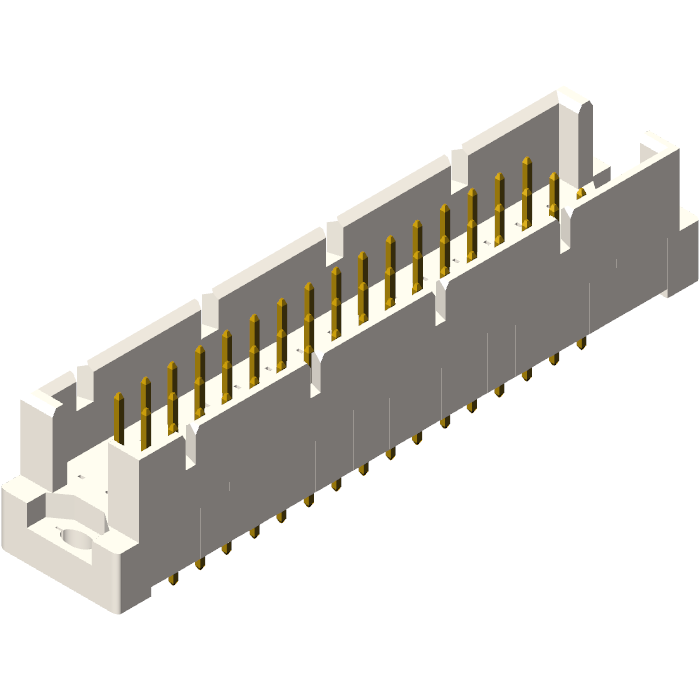

C1/2 TYPE
Material
- Insulator: Glass - filled thermoplastic PBT UL64V-0
- Contacts: Male Brass / Female - Phosphor Bronze
- Plating: Full gold or selected gold in mating area
Electrical
- Current Rating: 2 AMP
- Contact Resistance: 30 mΩ Max Insulator
- Operating Temperature: - 55 °C ~ + 105 °C
- Insulation Resistance: 1000MΩ Min at DC 500V DC
- Withstanding Voltage: 1000V AC for 1 minute
- Voltage Rating : 250 VAC
