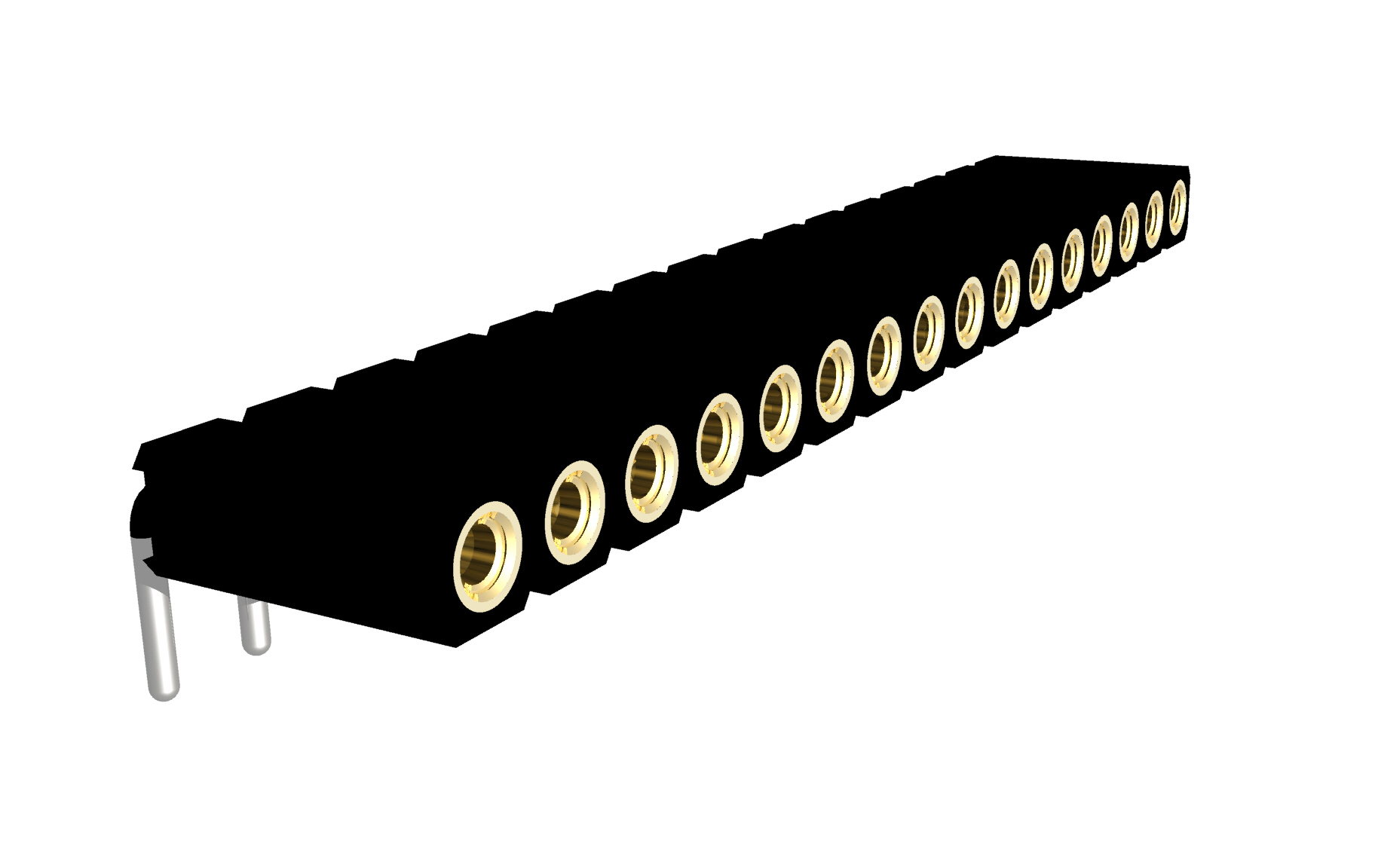

FEMALE PITCH mm 1,27 - 2,54
Material
- Current Rating: 1.0 AMP
- Contact Resistance: 10mΩ Max
- Dielectric Strength: Min 500 VRMS
- Mechanical Life: Min 500 Cycles
- Mating Pin: Ø0.38 to Ø0.50mm
- Forces: polished steel gauge Ø0.41mm
- Insertion: 150g Max/Pin, Withdrawal: 30g Min/Pin
- Operation Temperature: -40°C to +105°C
- Sleeve: Brass CuZn36Pb3(C36000), Sn over Ni
- Contact Clip (6 finger): BeCu (C17200), Au or Sn over Ni
- Insulator Material: PPS +30% G.F (UL94V-0)
