PITCH mm 2,00

Material

Contact Material: Brass
Contact Plating: Au or Sn Over Ni
Insulator Material: Polyester (UL94V-0)
Standard: PA6T
Max processing temp: 230°C for 30-60 seconds 260°C for 10 seconds

Electrical

Rated Current:1.5 AMP
Contact Resistance: 20mΩ Max
Withstand Voltage: 500V AC/DC
lnsulation Resistance: 1.000MΩ Min
Operation temperature: - 40°C to + 105°C

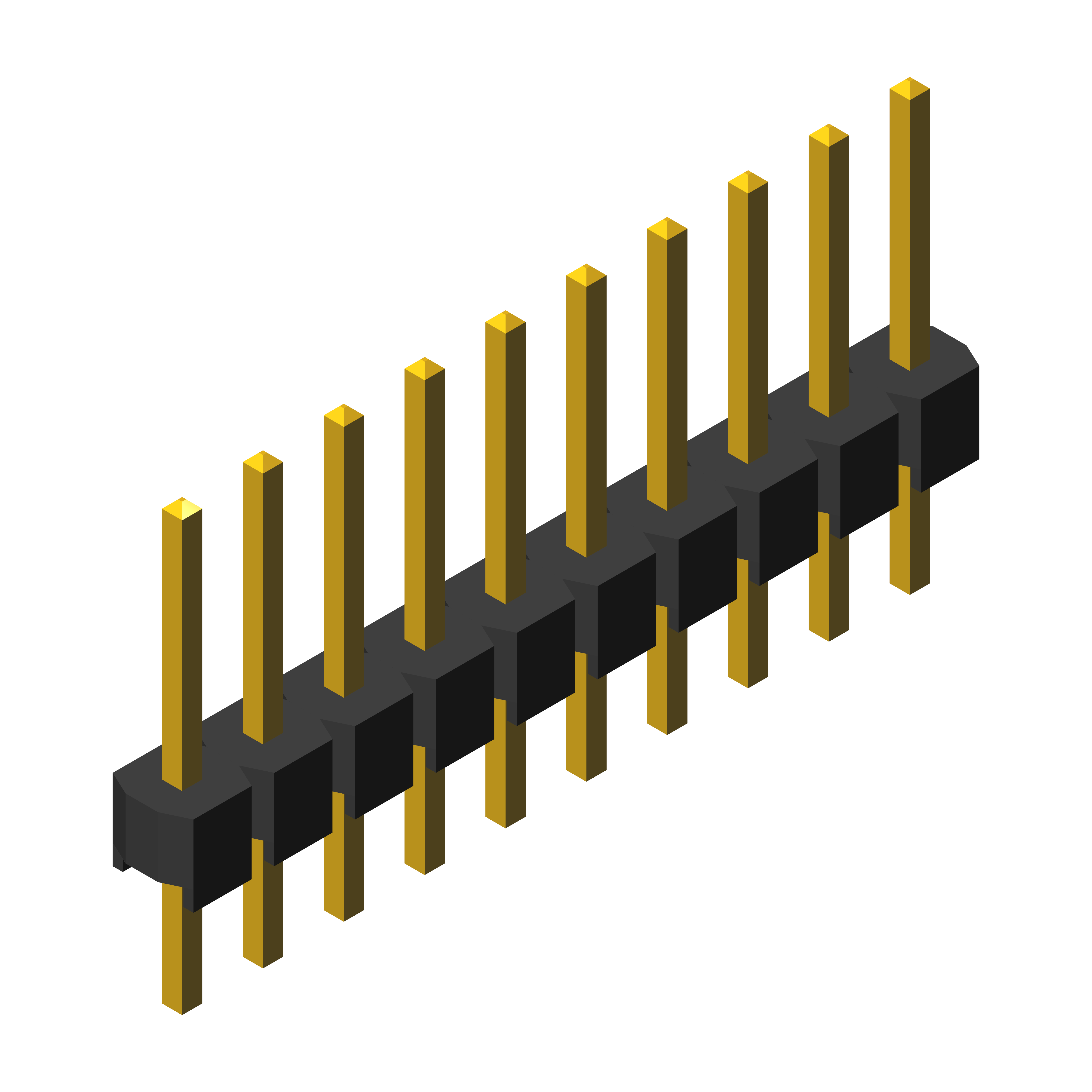

PH200-1XXDXYYYF

MALE HEADER - SINGLE ROW - PITCH mm 2,00 - STRAIGHT - THT -

Datasheets:

PH200-1XXDFYYYF

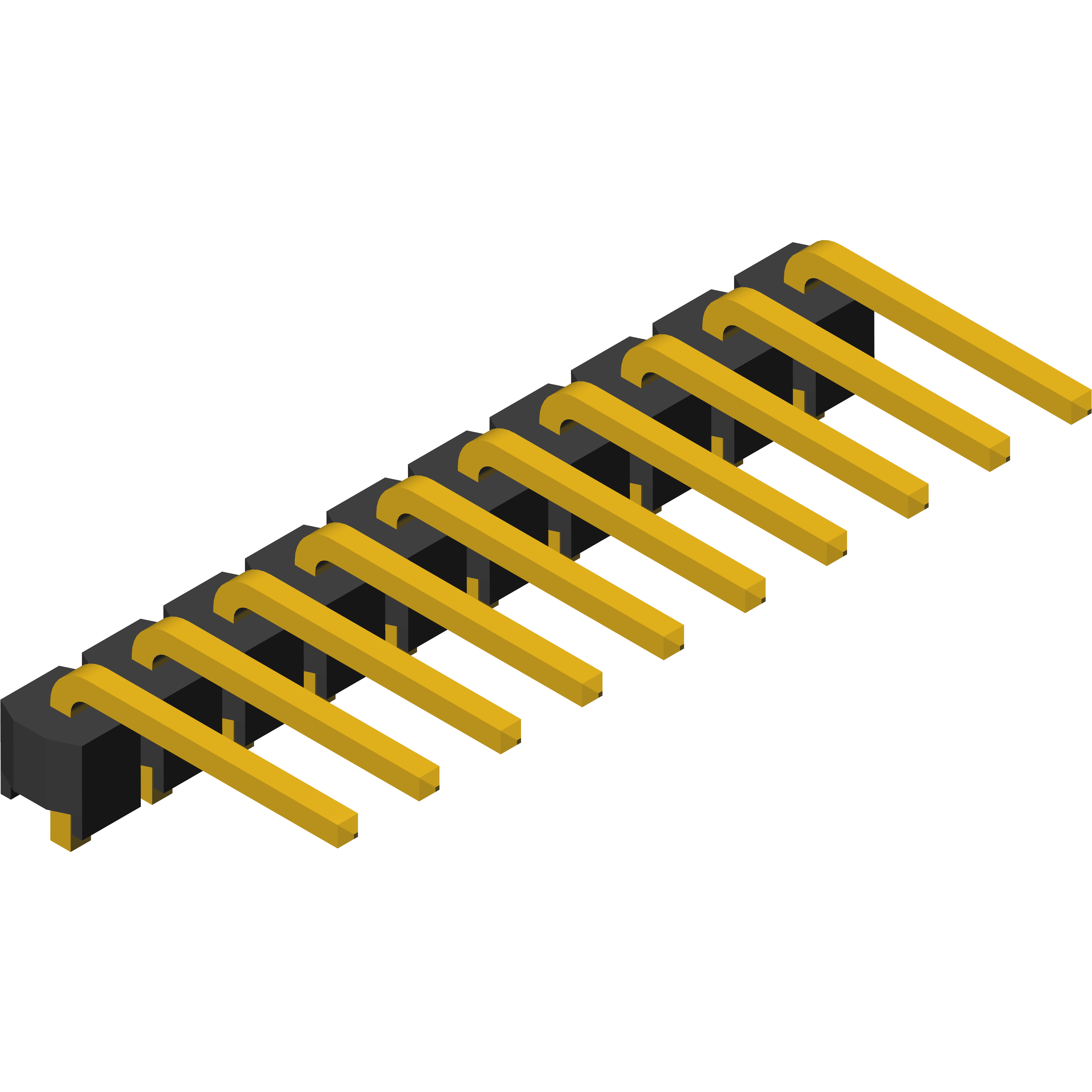

PH200-1XXUXYYYF

MALE HEADER - SINGLE ROW - PITCH mm 2,00 - RIGHT ANGLE - THT -

Datasheets:

PH200-1XXUFYYYF

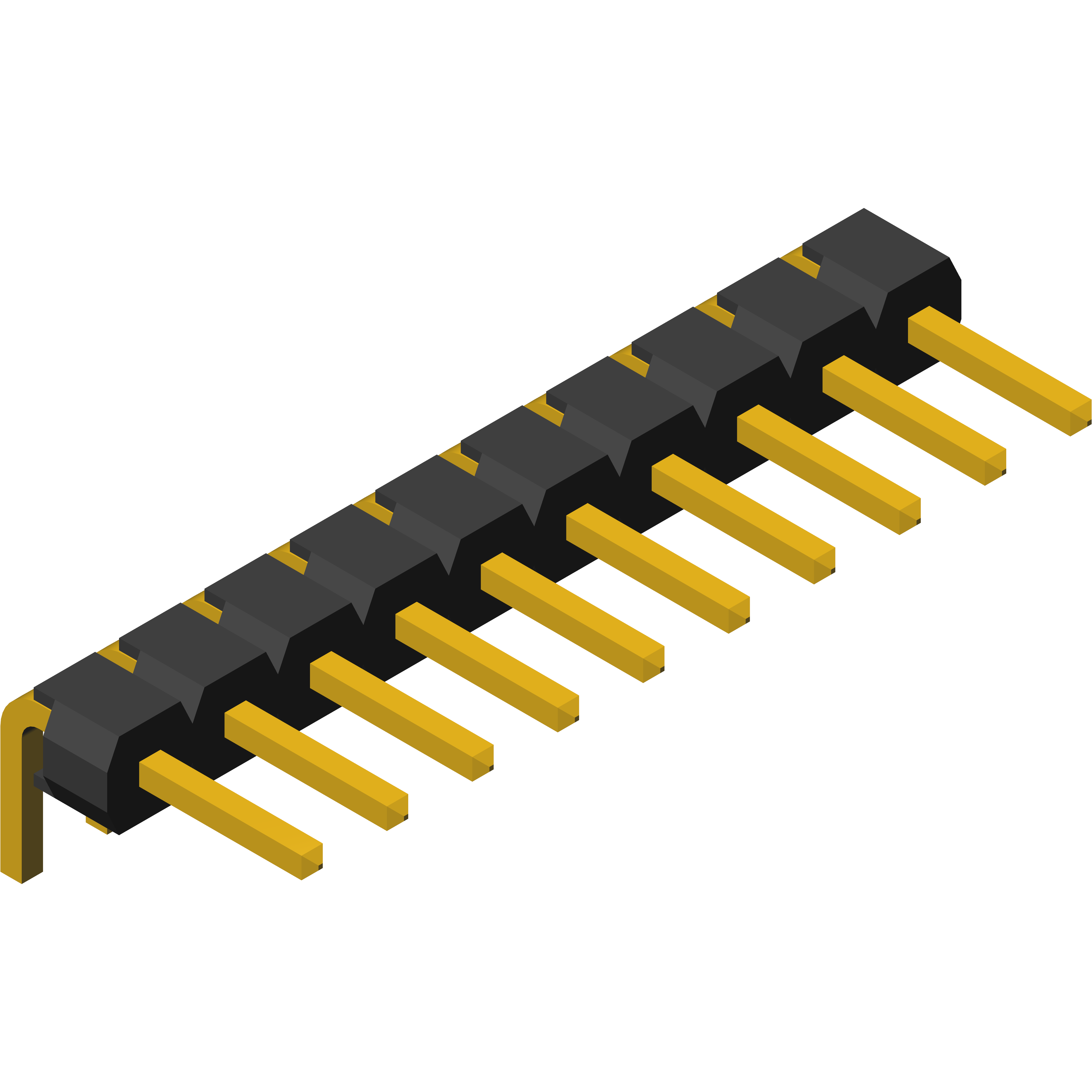

PH200-1XXRXYYYF

MALE HEADER - SINGLE ROW - PITCH mm 2,00 - RIGHT ANGLE - THT -

Datasheets:

PH200-1XXRFYYYF

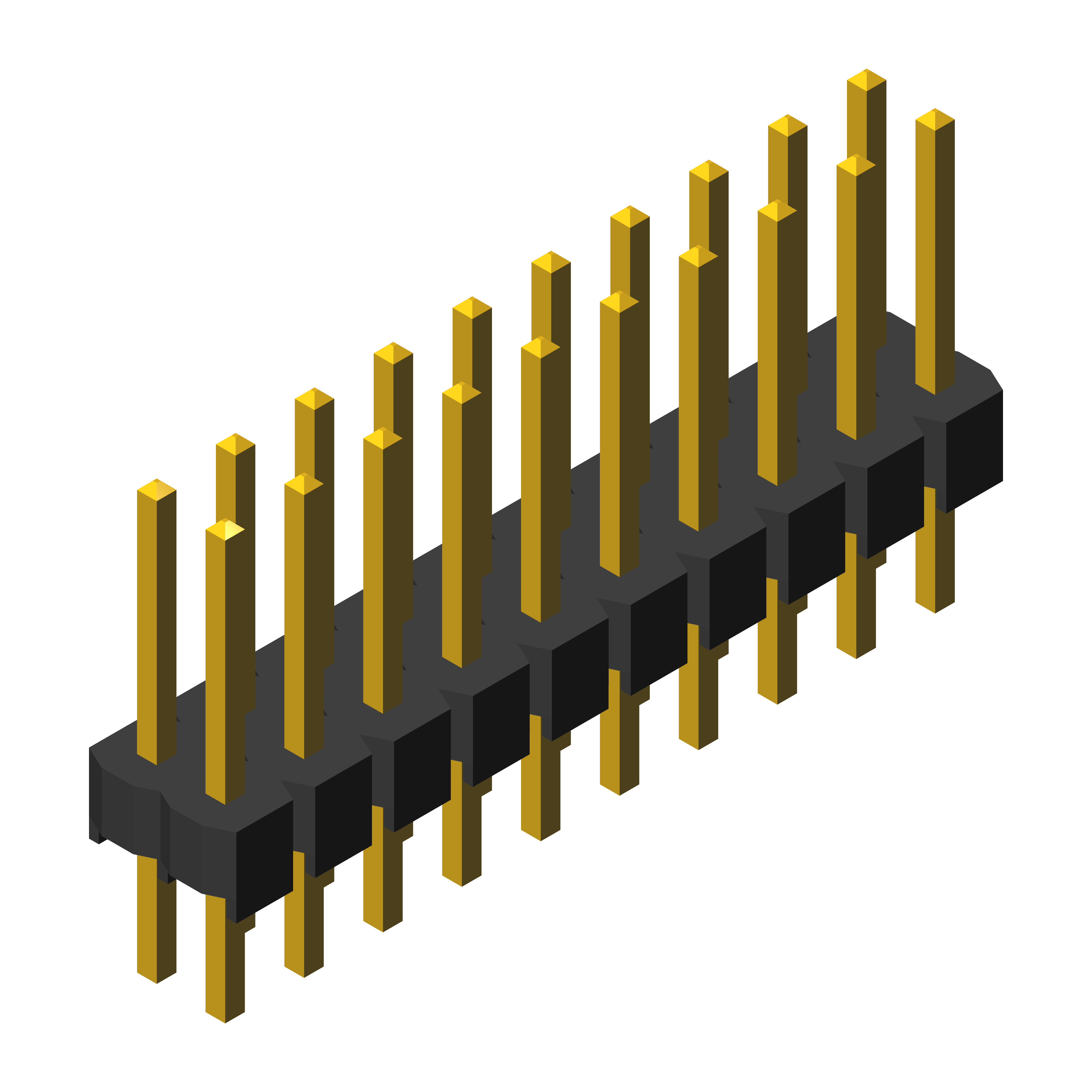

PH200-2XXDXYYYF

MALE HEADER - DOUBLE ROW - PITCH mm 2,00 - STRAIGHT - THT -

Datasheets:

PH200-2XXDC165FB8X PH200-2XXDFYYYF

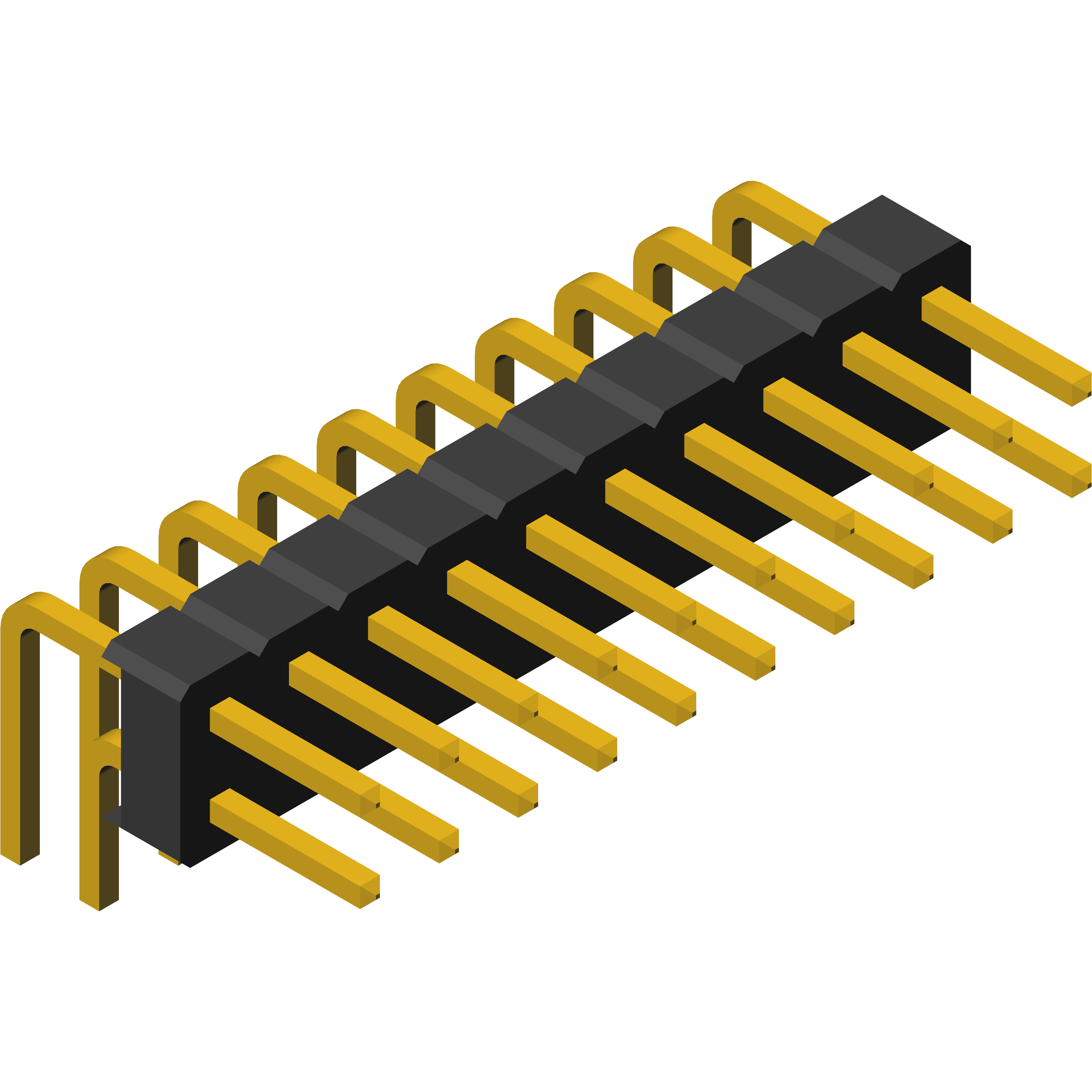

PH200-2XXRXYYYF

MALE HEADER - DOUBLE ROW - PITCH mm 2,00 - RIGHT ANGLE - THT -

Datasheets:

PH200-2XXRFYYYF

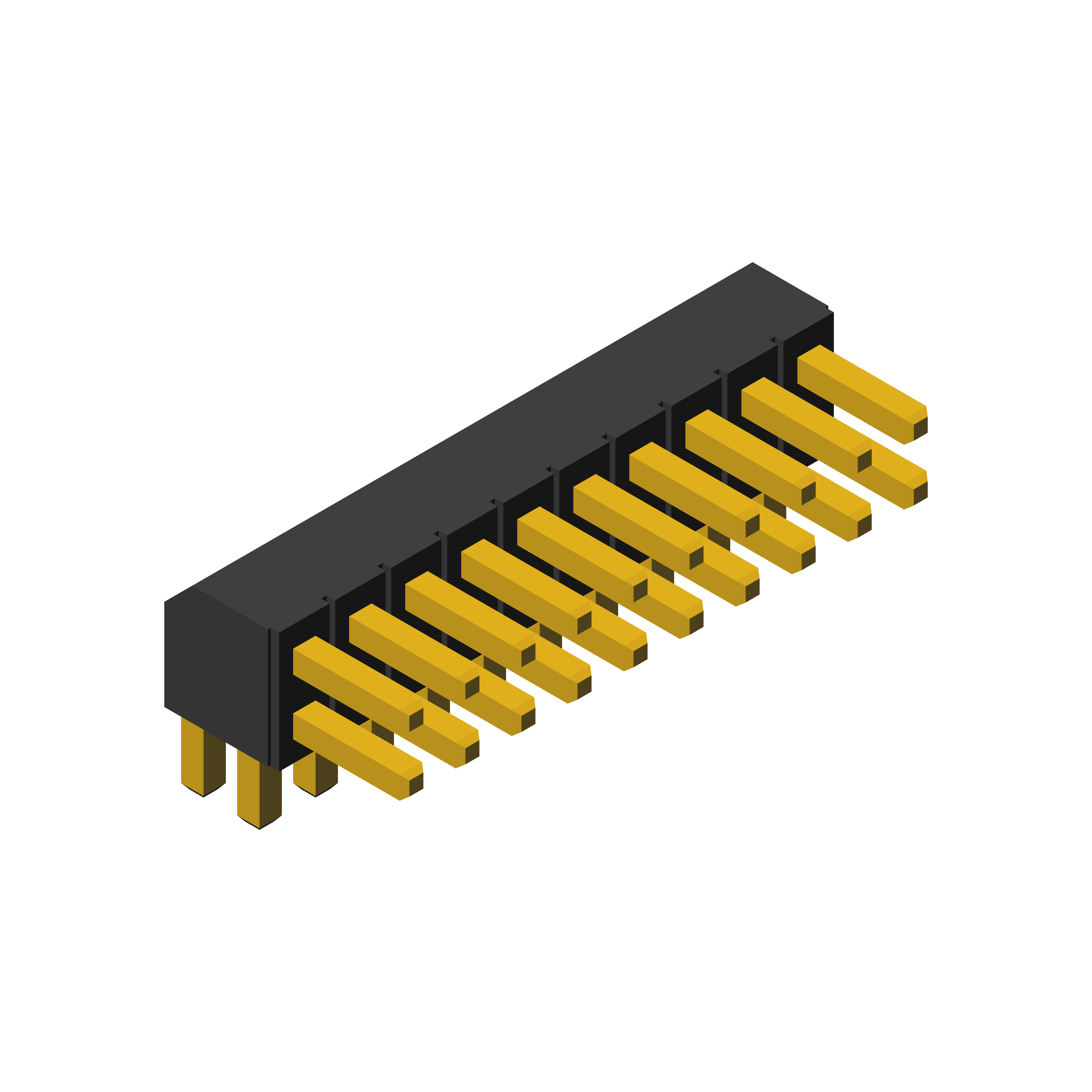

PH200-2XXRXYYYP

MALE HEADER - DOUBLE ROW - PITCH mm 2,00 - RIGHT ANGLE - THT -

Datasheets:

PH200-2XXRFYYYP

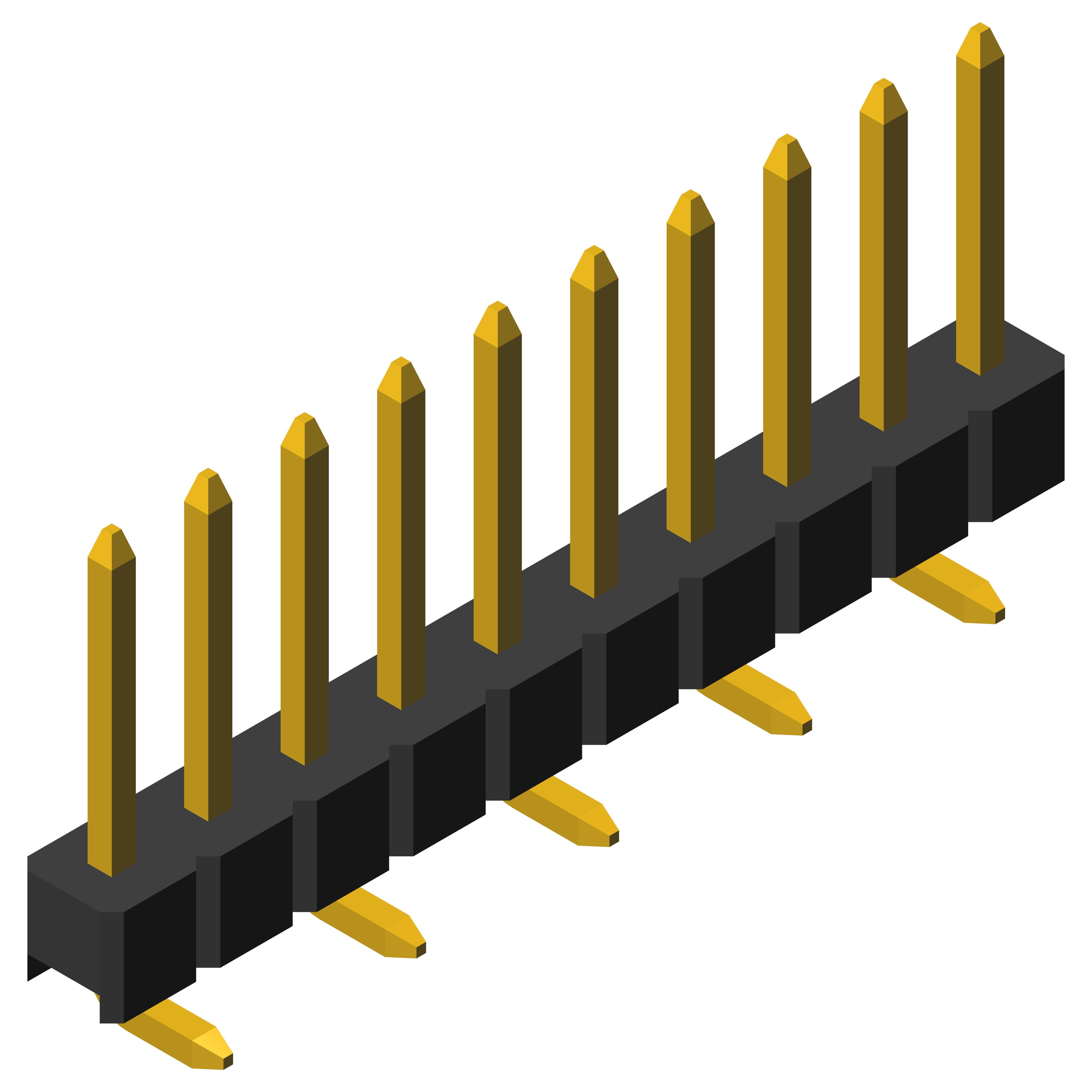

PH200-1XXMXYYYF

MALE HEADER - SINGLE ROW - PITCH mm 2,00 - STRAIGHT - SMT -

Datasheets:

PH200-1XXMFYYYF

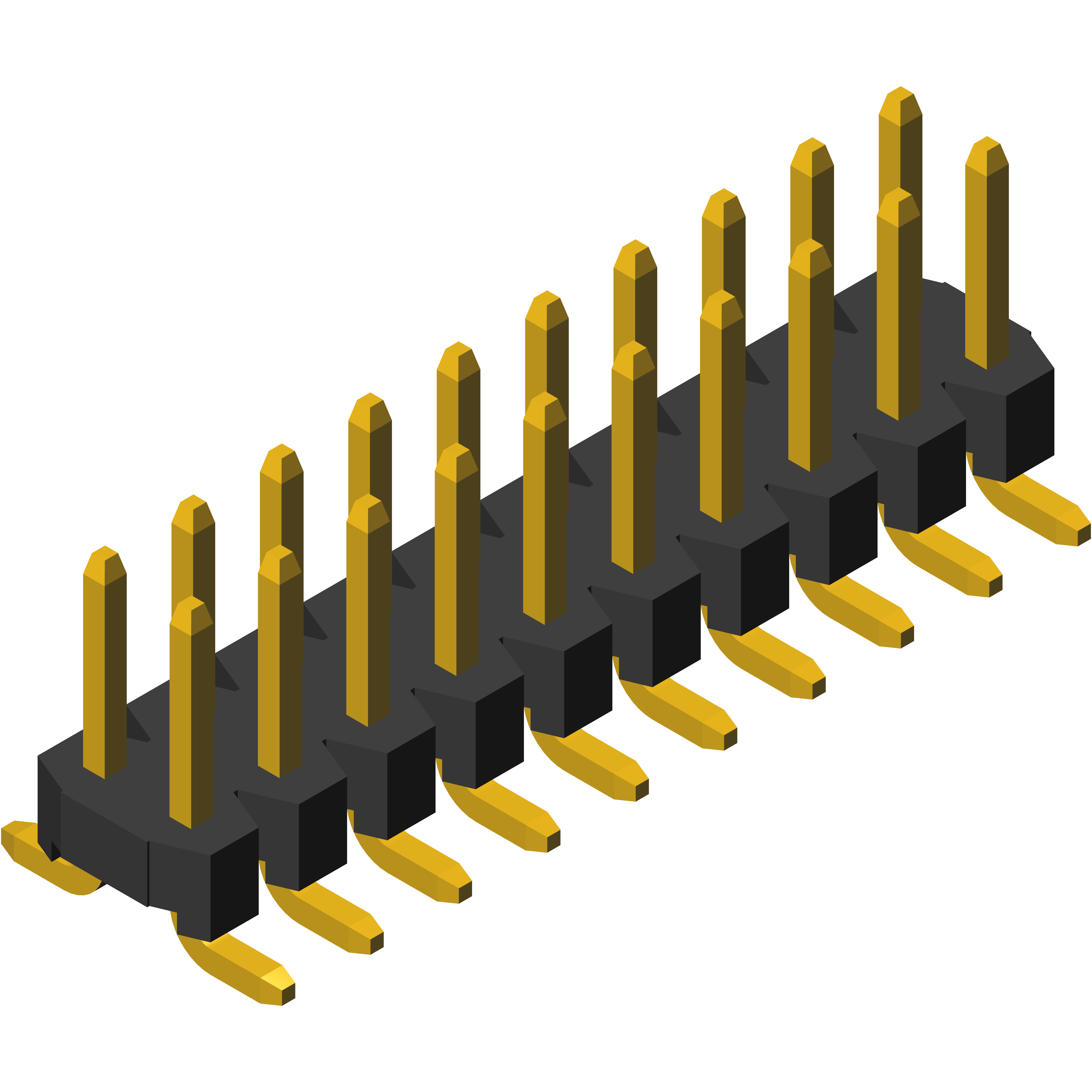

PH200-2XXMXYYYF

MALE HEADER - DOUBLE ROW - PITCH mm 2,00 - STRAIGHT - SMT -

Datasheets:

PH200-2XXM-(1) modificato PH200-2XXMFYYYF PH200-2XXMYYYXXXX

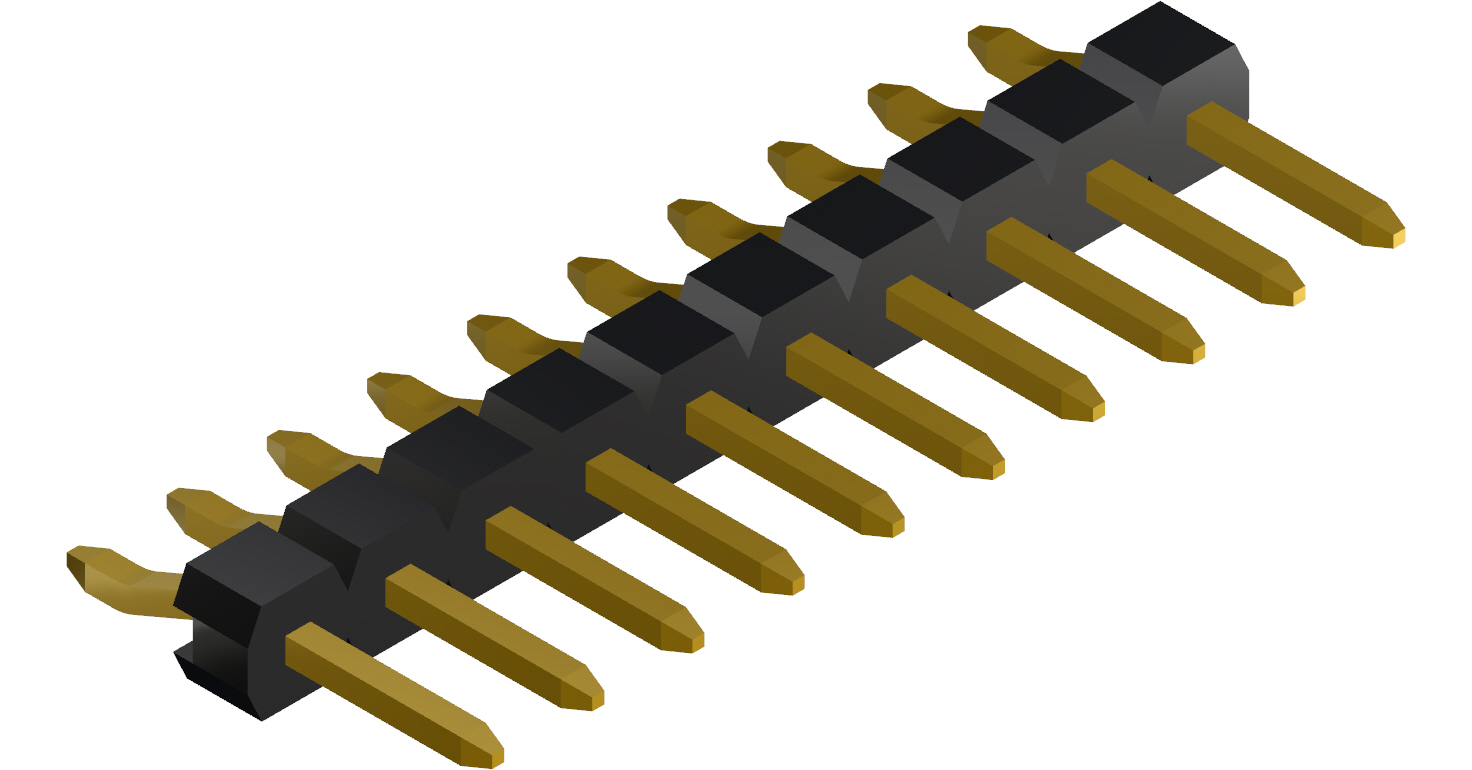

PH200-1XXNXYYYN

MALE HEADER - SINGLE ROW - PITCH mm 2,00 - RIGHT ANGLE- SMT -

Datasheets:

PH200-1XXNFYYYF

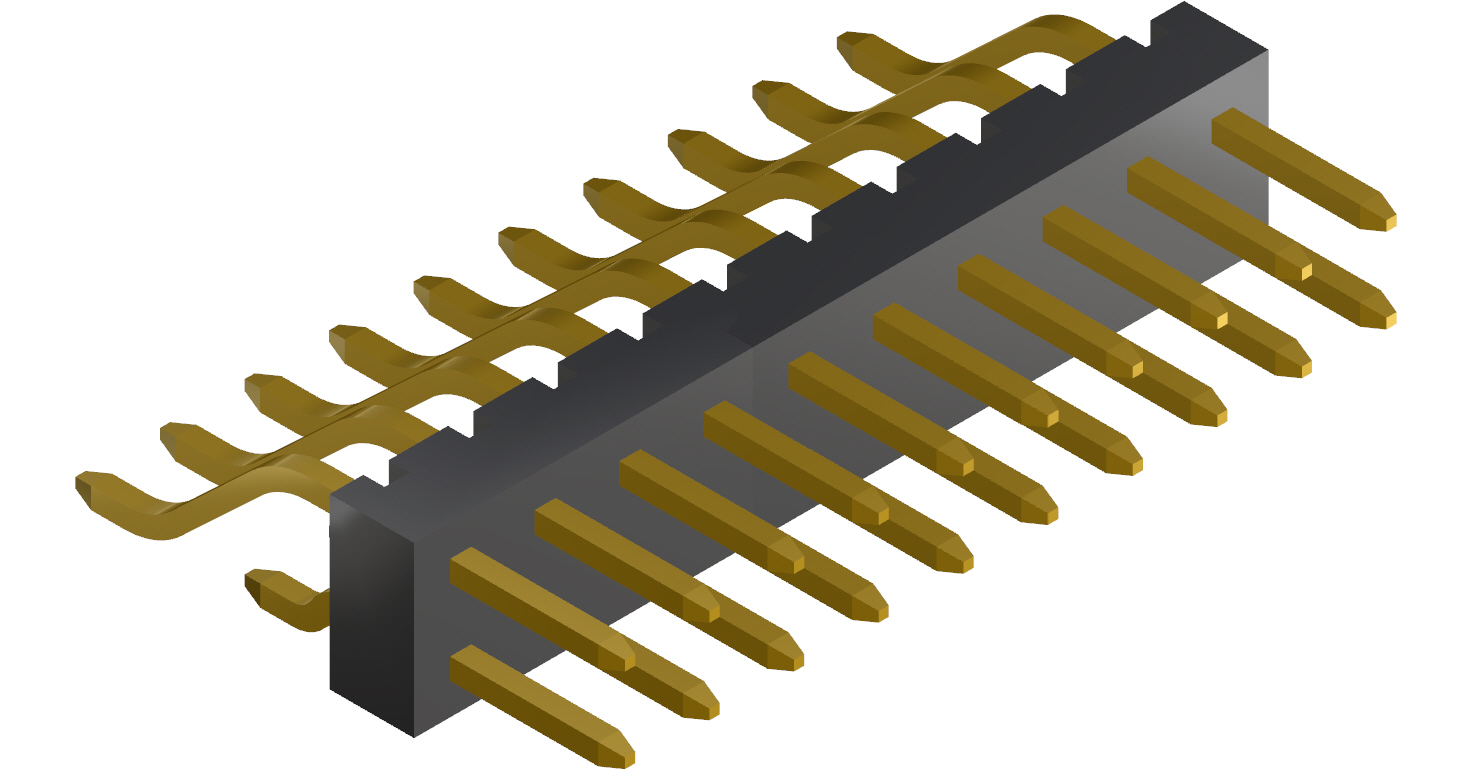

PH200-2XXNXYYYF

MALE HEADER - DOUBLE ROW - PITCH mm 2,00 - RIGHT ANGLE - SMT -

Datasheets:

PH200-2XXNFYYYF PH200-2XXNFYYYFP

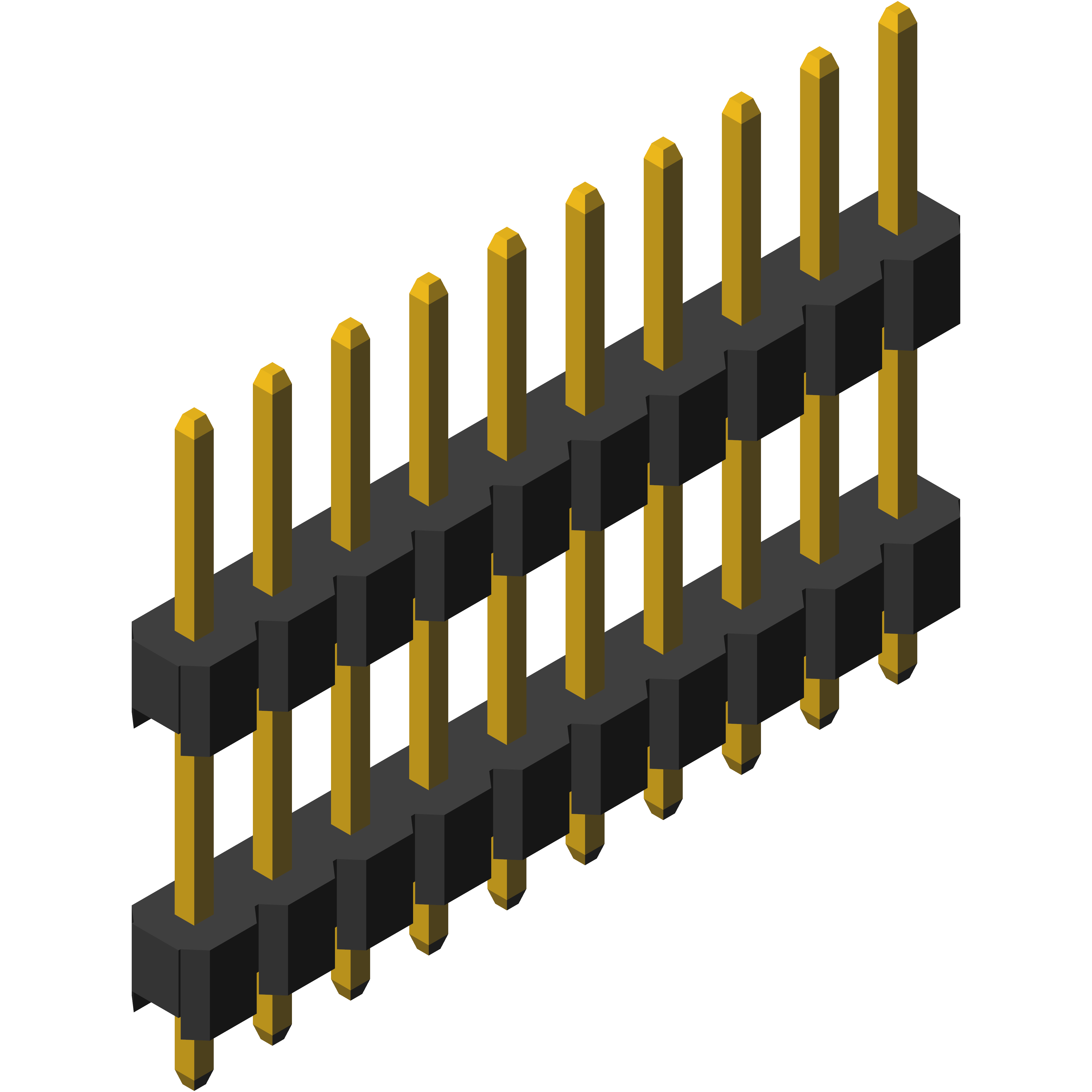

PH200-1XXFXYYYB

MALE HEADER - SINGLE ROW - PITCH mm 2,00 - STRAIGHT - THT - DOUBLE INSULATOR

Datasheets:

PH200-1XXDFYYYB

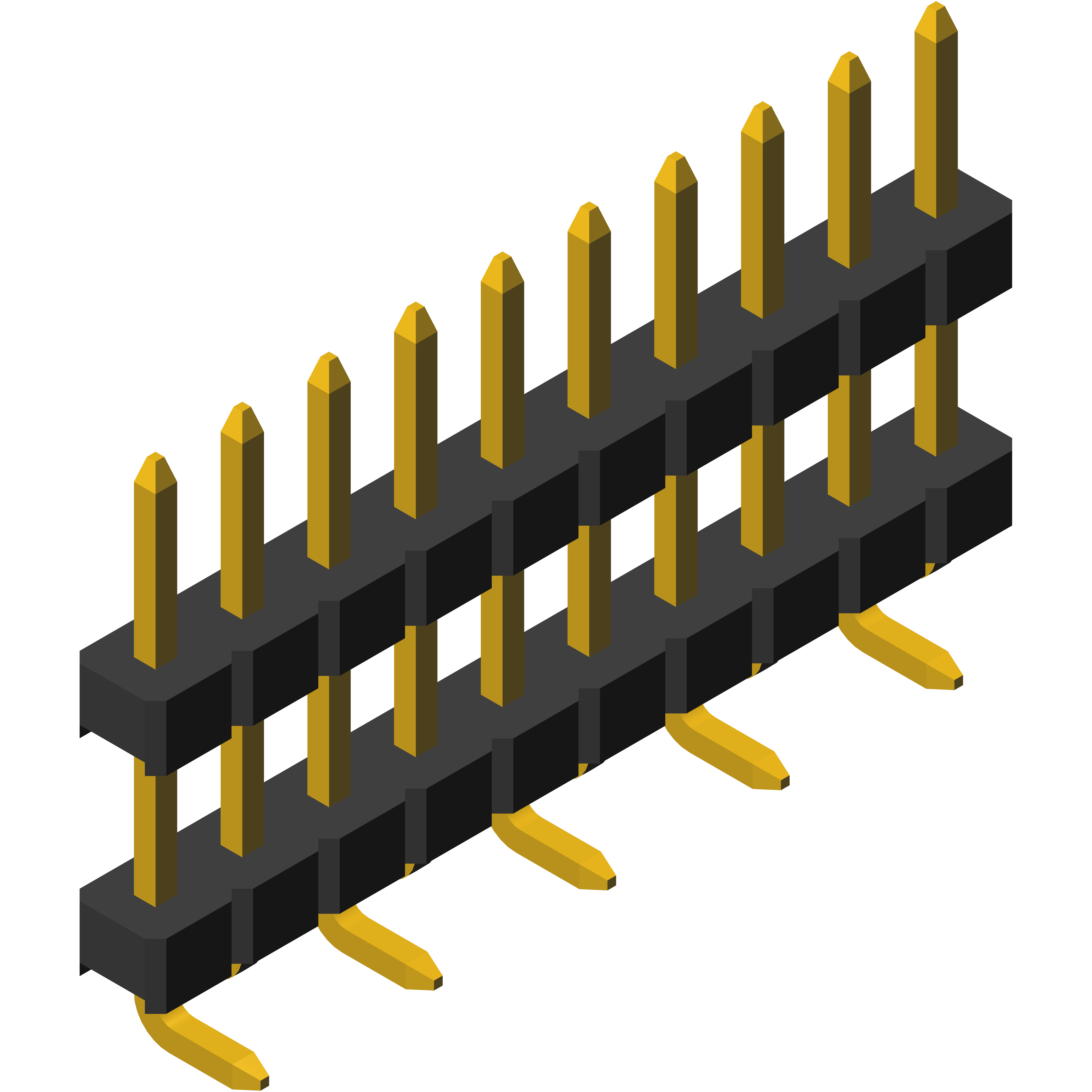

PH200-1XXMXYYYN

MALE HEADER - SINGLE ROW - PITCH mm 2,00 - STRAIGHT - SMT - DOUBLE INSULATOR

Datasheets:

PH200-1XXMFYYYK PH200-1XXMFYYYN

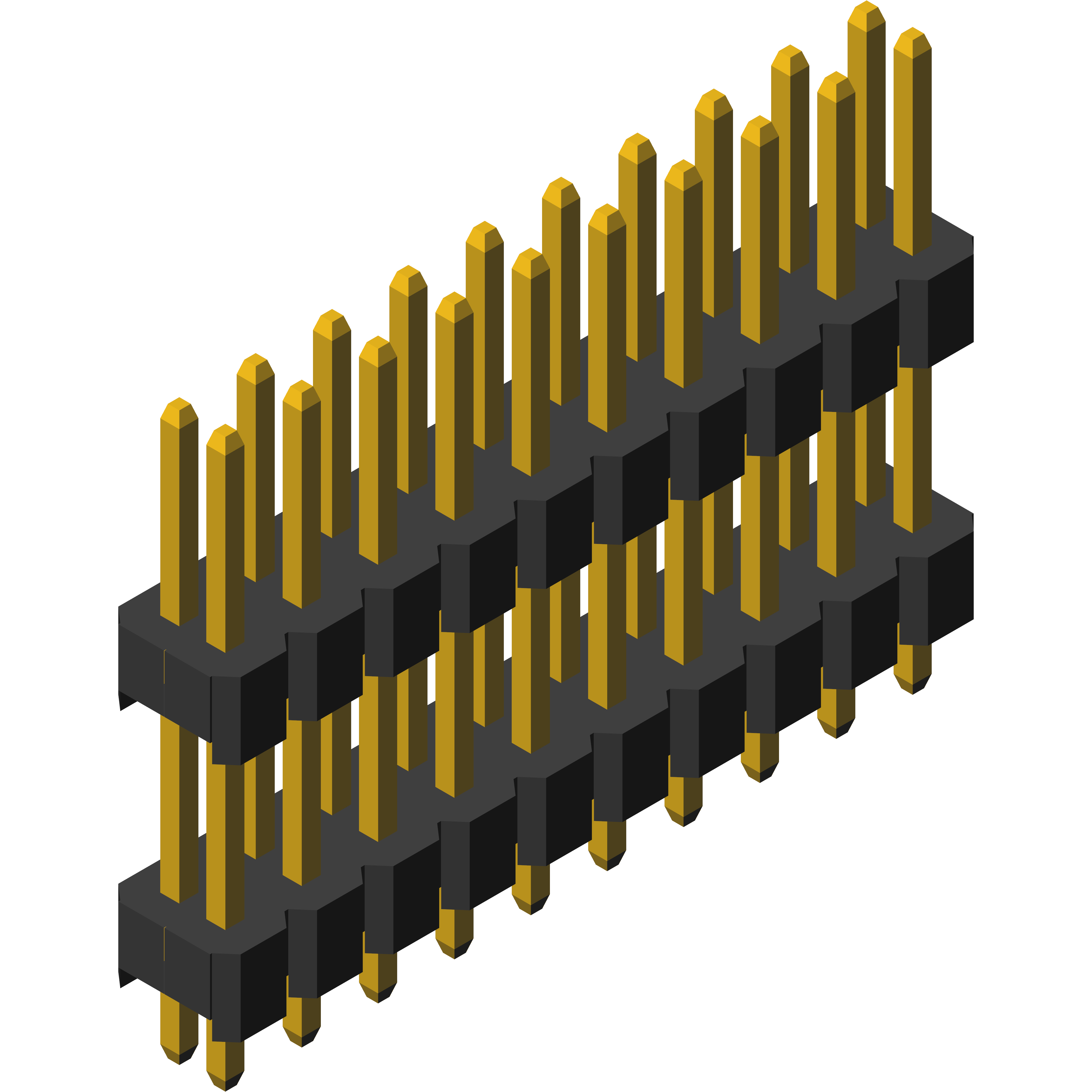

PH200-2XXDXYYYB

MALE HEADER - DOUBLE ROW - PITCH mm 2,00 - STRAIGHT - THT - DOUBLE INSULATOR

Datasheets:

PH200-2XXDFYYYB

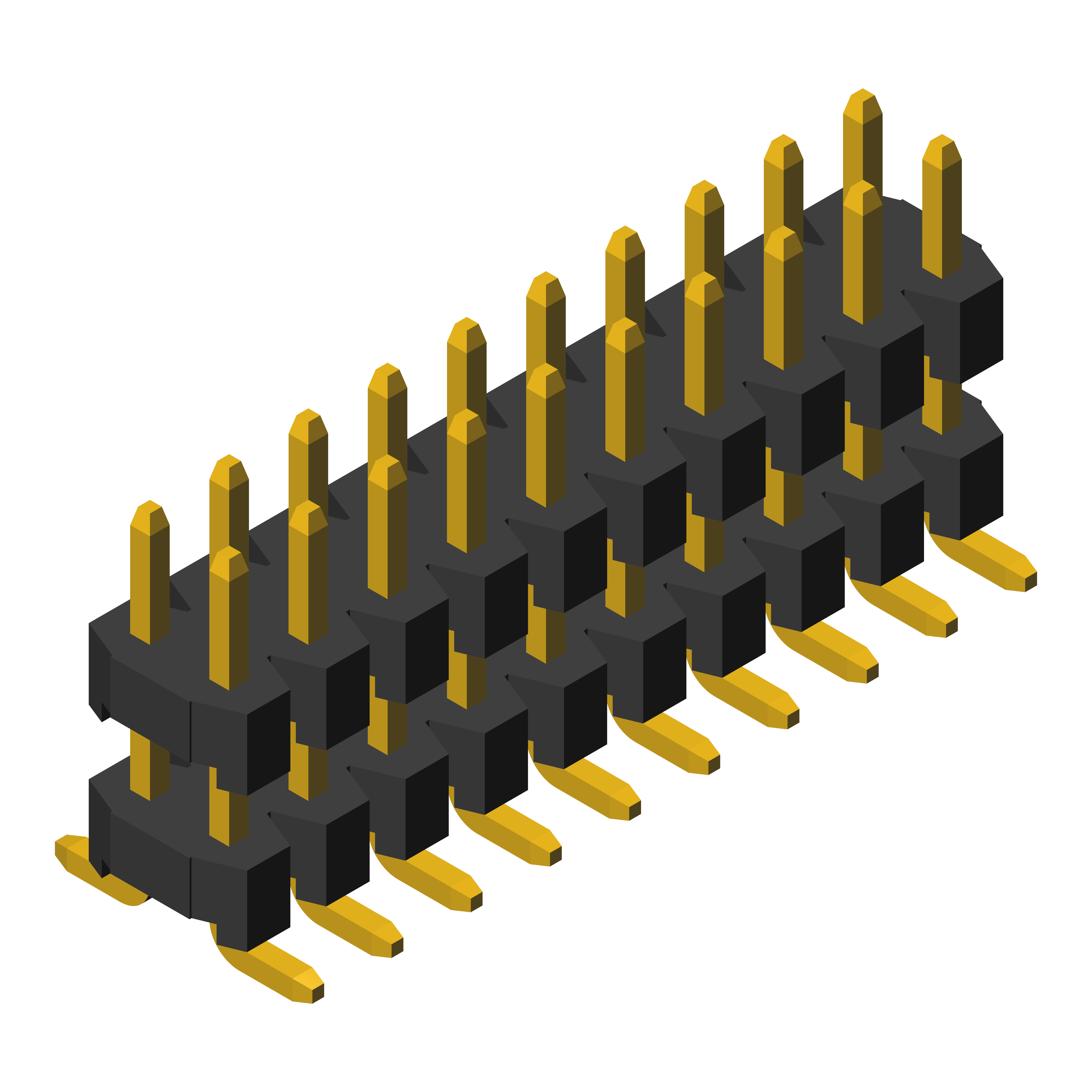

PH200-2XXMXYYYN

MALE HEADER - DOUBLE ROW - PITCH mm 2,00 - STRAIGHT - SMT - DOUBLE INSULATOR

Datasheets:

PH200-2XXMFYYYN
