USB A - B - 3.1 TYPE

Material

Housing: 30% Glass Filled PBT UL94V-0
Contacts: Phosphor Bronze
Pin Plated: Gold 3u” over 50u” nickel

Electrical

Current Rating : 1 AMP
Contact Resistance : 30 mΩ Max.
Temperature : - 55 °C ~ + 105 °C
Insulation Resistance : 1000MΩ Min. at 500V DC
Dielectric Withstanding Voltage: 500 VAC / Minute

USB-A04RFFN

USB 2.0 - TYPE A - 4 CONTACTS - THT - RIGHT ANGLE

Datasheets:

USB-A04RFFN USB-A04RFFN1807

USB-A04DFFN

USB 2.0 - TYPE A - 4 CONTACTS - THT - STRAIGHT

Datasheets:

USB-A04DFFN

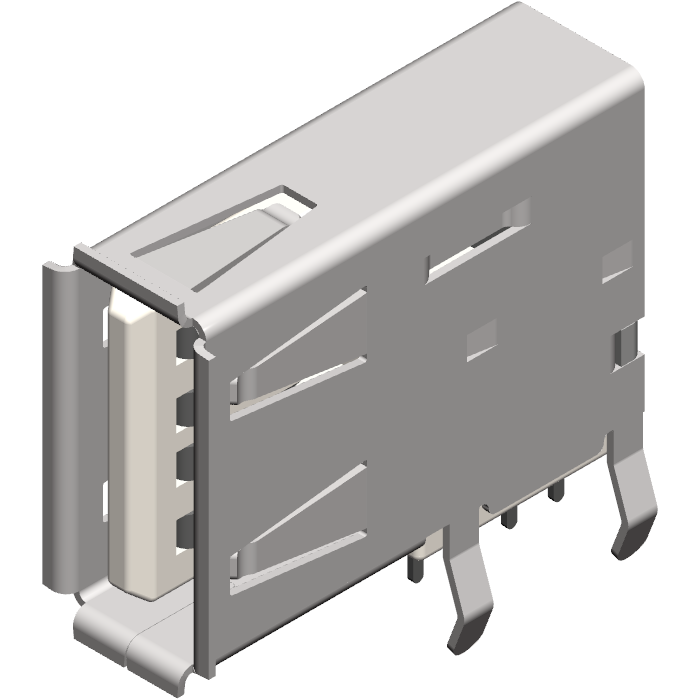

USB-A04CFFN

USB 2.0 - TYPE A - 4 CONTACTS - THT - RIGHT ANGLE

Datasheets:

USB-A04CFFN

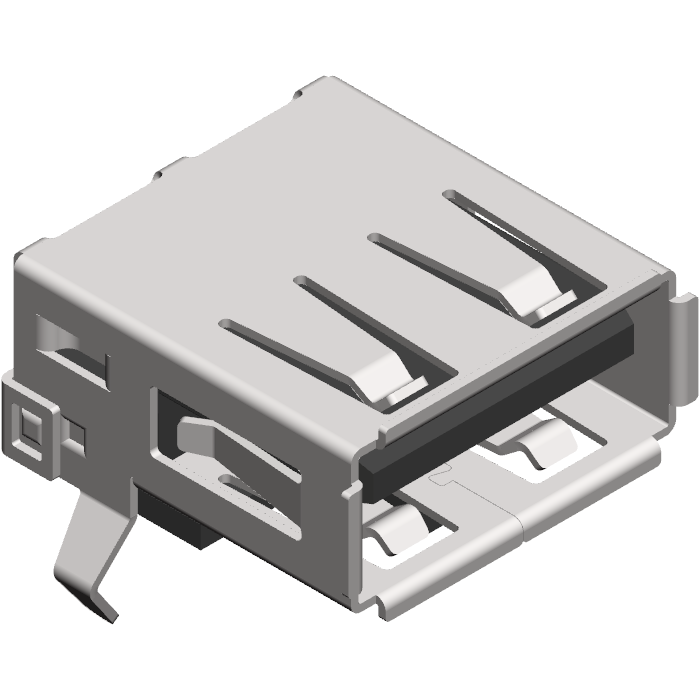

USB-A04NFFN

USB 2.0 - TYPE A - 4 CONTACTS - SMT - RIGHT ANGLE

Datasheets:

USB-A04NFFN

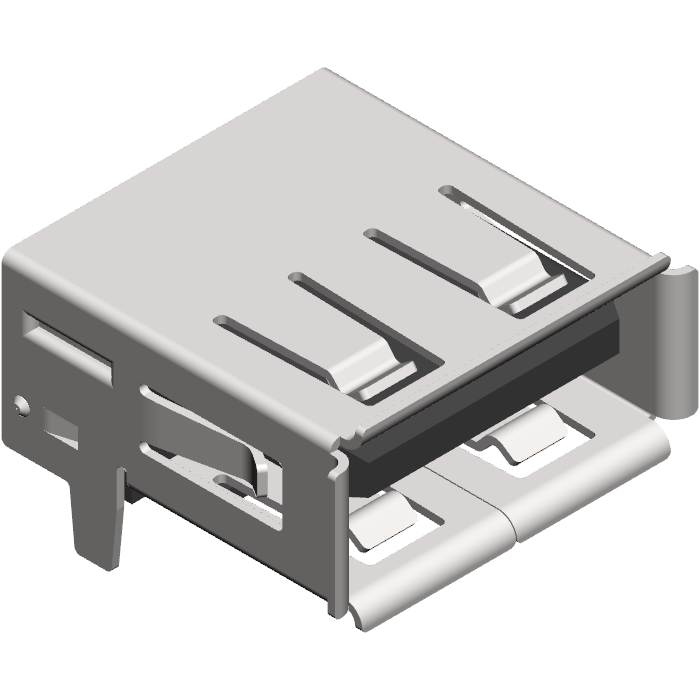

USB-A04NFFNE

USB 2.0 - TYPE A - 4 CONTACTS - SMT - RIGHT ANGLE

Datasheets:

USB-A04NFFNE

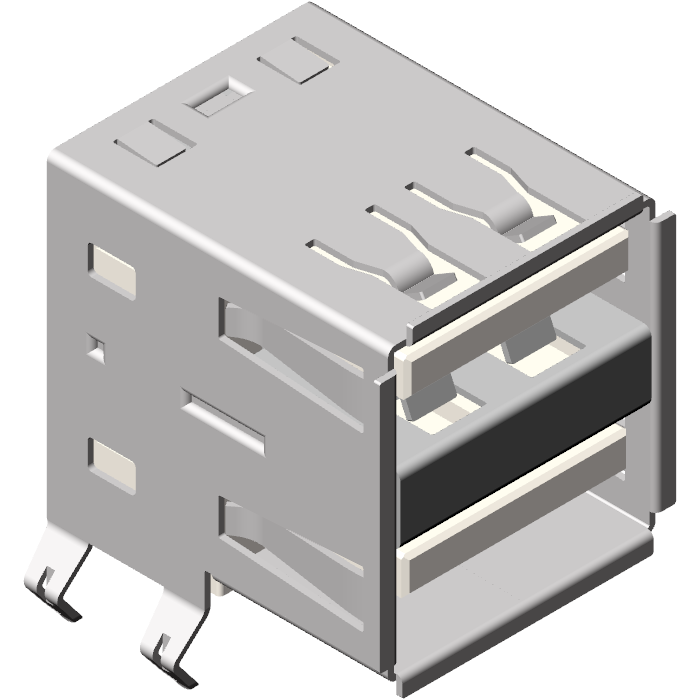

USB-2A04RFFN

USB 2.0 - TYPE A - 4 CONTACTS - THT - RIGHT ANGLE - DOUBLE PORT

Datasheets:

USB-2A04RFFN

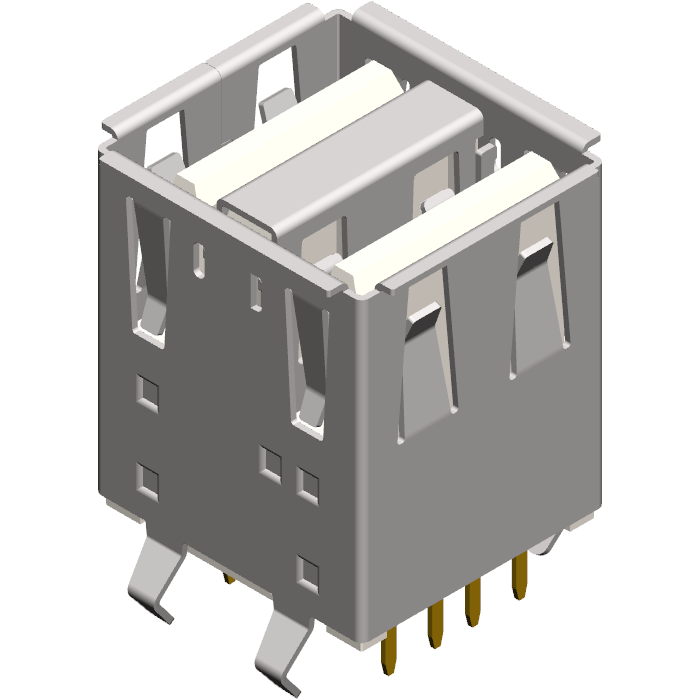

USB-2A04DFFN

USB 2.0 - TYPE A - 4 CONTACTS - THT - STRAIGHT - DOUBLE PORT

Datasheets:

USB-2A04DFFN

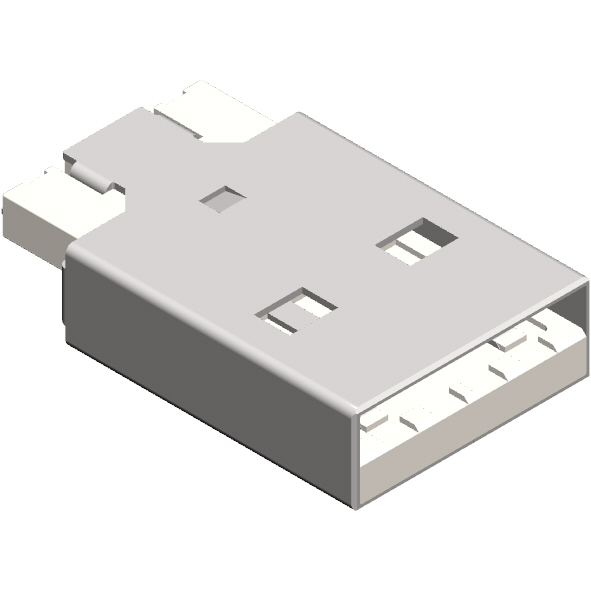

USB-A04RMFN

USB 2.0 - TYPE A - MALE - 4 CONTACTS - CABLE - MID MOUNT

Datasheets:

USB-A04RMXXX

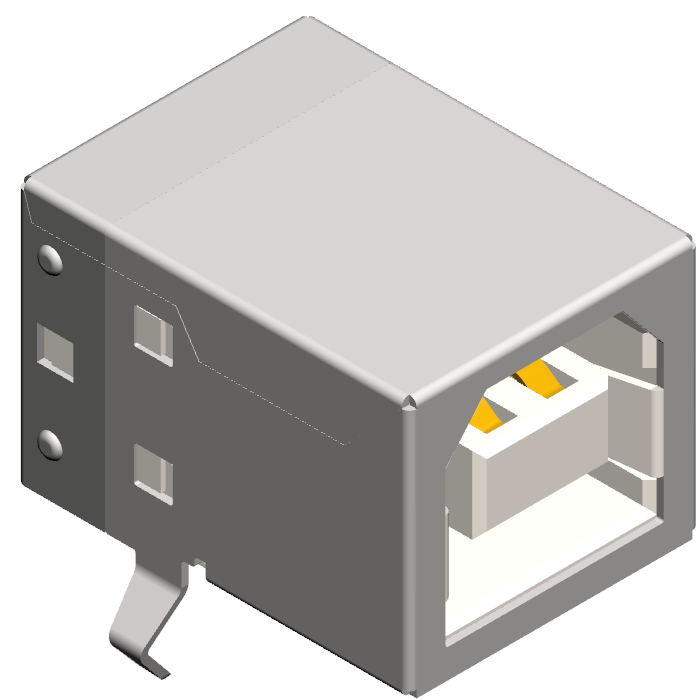

USB-B04RFFN

USB 2.0 - TYPE B - 4 CONTACTS - THT - RIGHT ANGLE

Datasheets:

USB-B04RFXXX

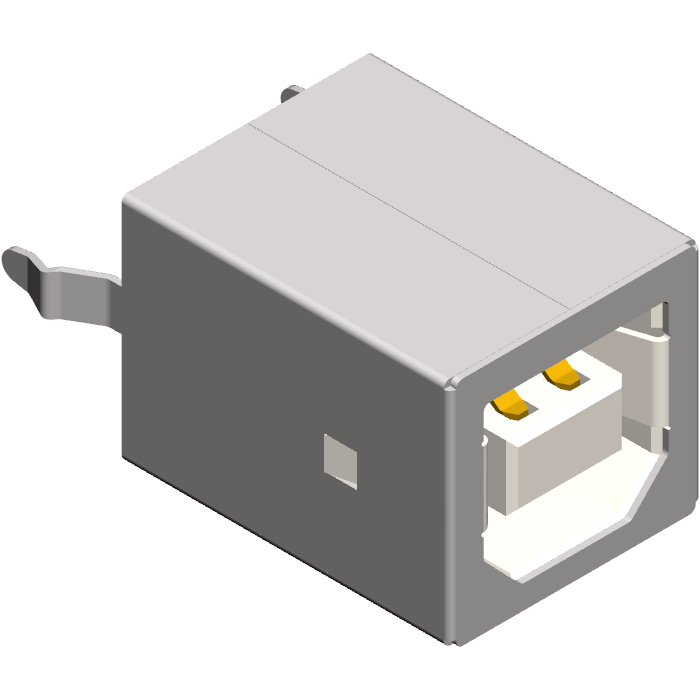

USB-04DFFN

USB 2.0 - TYPE B - 4 CONTACTS - THT - STRAIGHT

Datasheets:

USB-B04DFFN USB-B04DFFN1

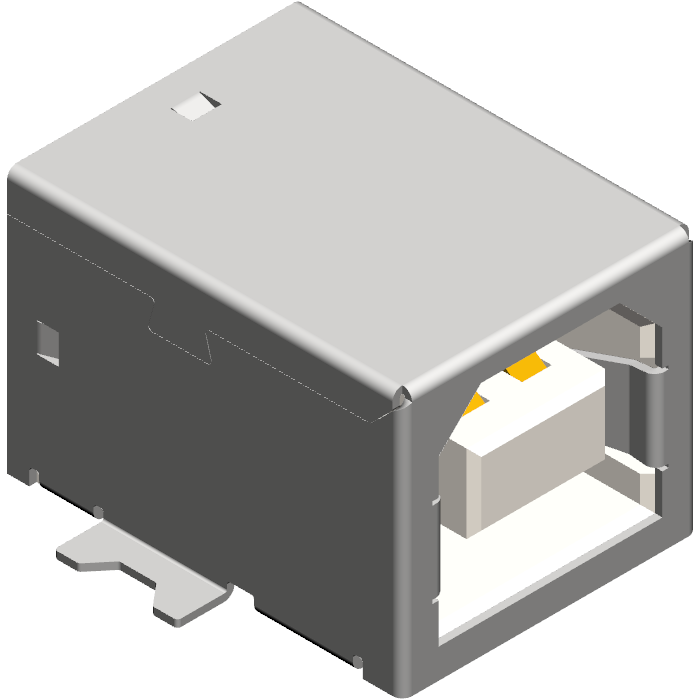

USB-B04NFFN

USB 2.0 - TYPE B - 4 CONTACTS - SMT - RIGHT ANGLE

Datasheets:

USB-B04NFFN

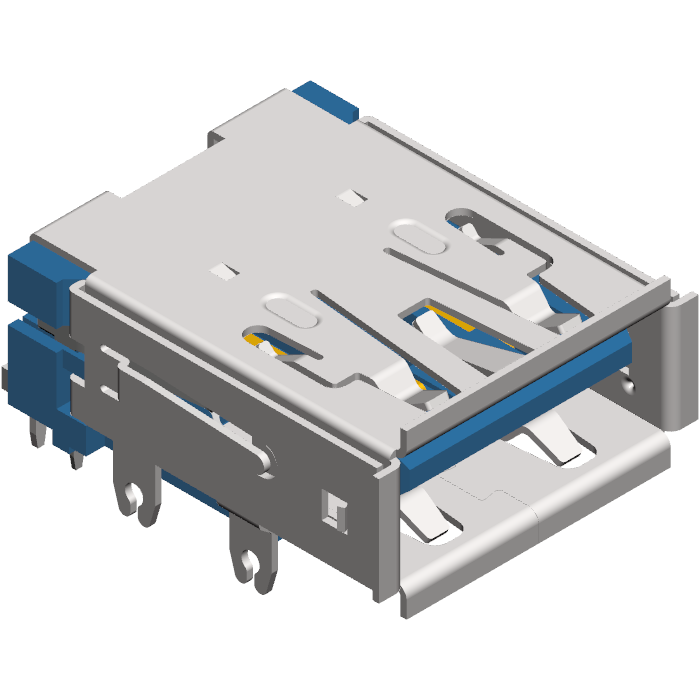

USB3-A09RFDN

USB 3.1 - TYPE A - 9 CONTACTS - THT - RIGHT ANGLE

Datasheets:

USB3-A09RFDN USB3-AXXX

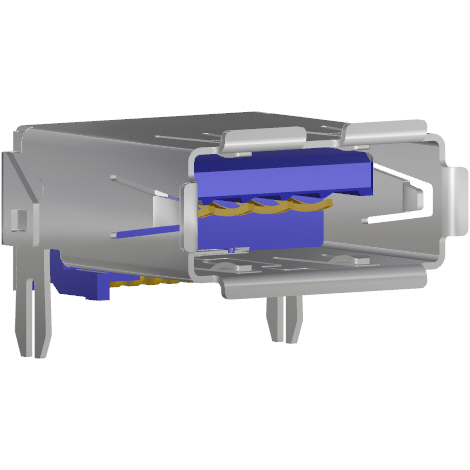

USB3-A09NFDN

USB 3.1 - TYPE A - 9 CONTACTS - SMT - RIGHT ANGLE

Datasheets:

USB3-A04NFDN

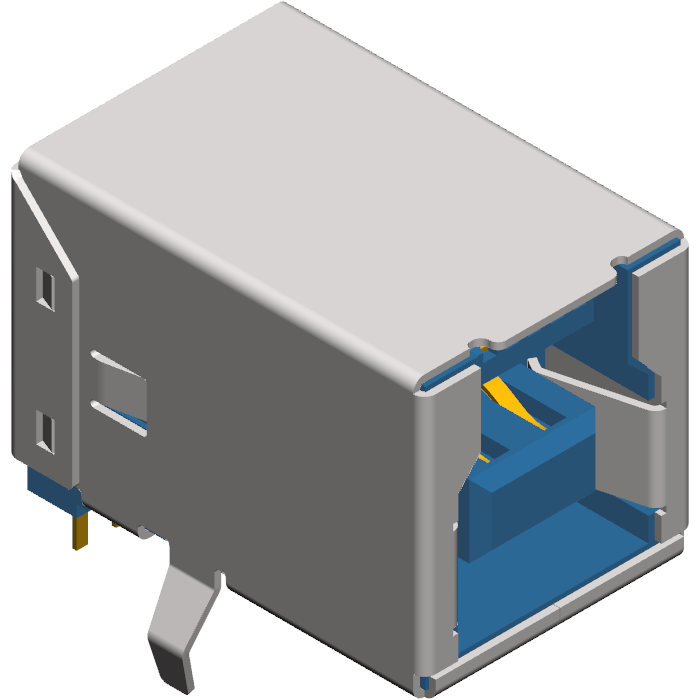

USB3-B09RFDN

USB 3.1 - TYPE B - 9 CONTACTS - THT - RIGHT ANGLE

Datasheets:

USB3-B09RFDN USB3-BXXXR

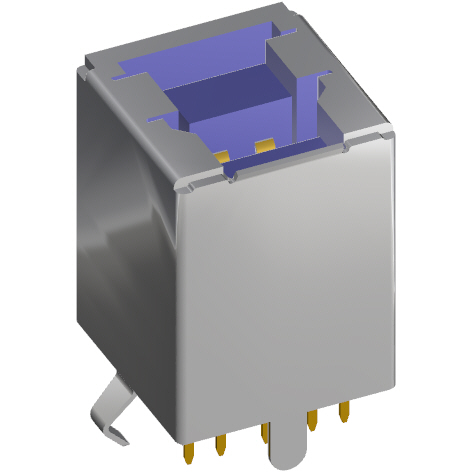

USB3-B09DFDN

USB 3.1 - TYPE B - 9 CONTACTS - THT - STRAIGHT

Datasheets:

USB3-B09DFDN
