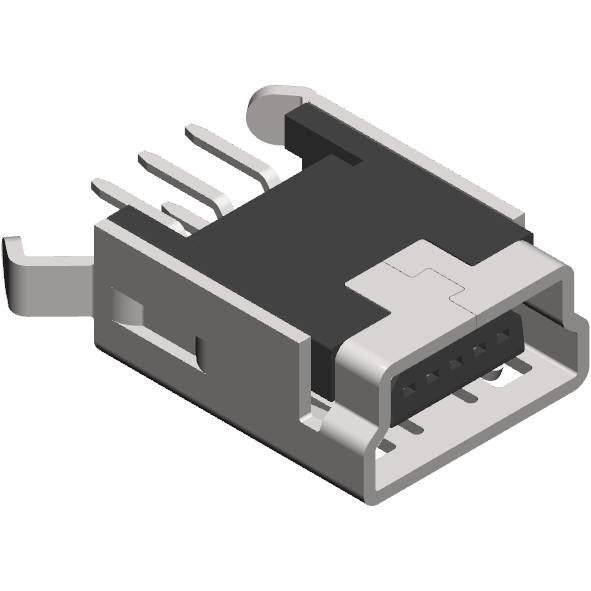

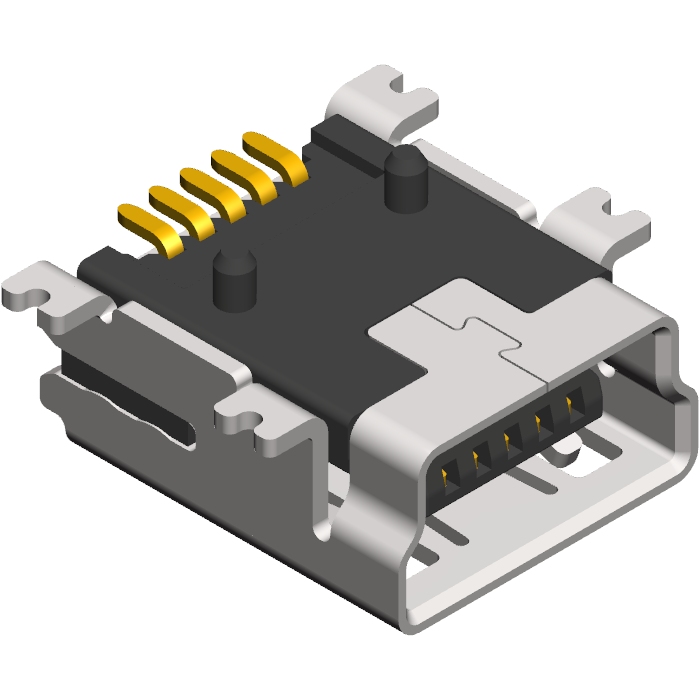

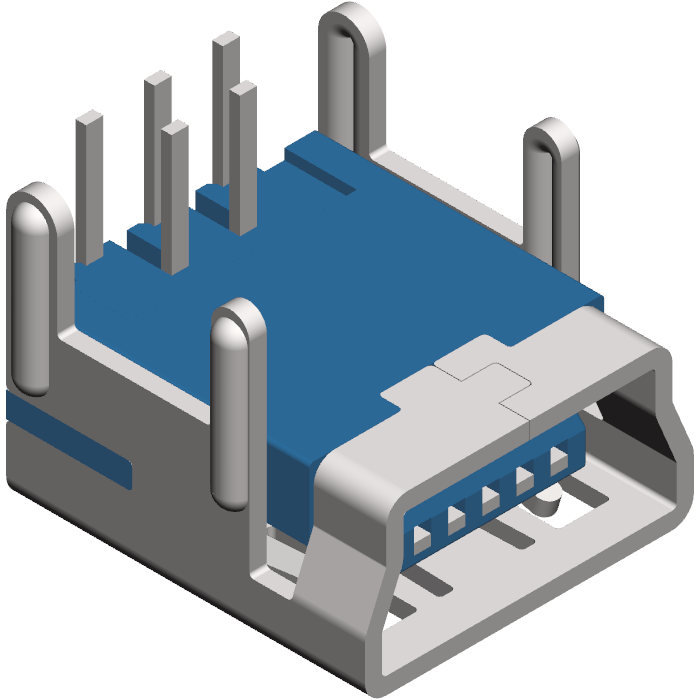

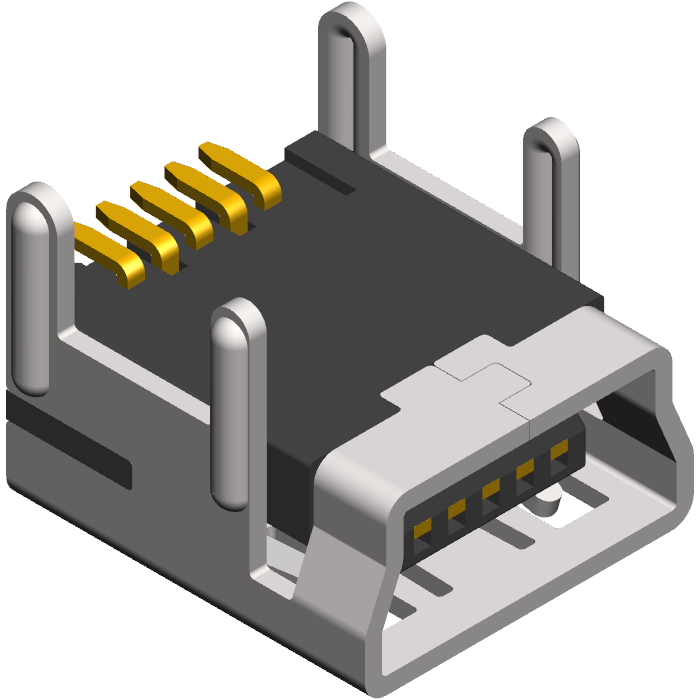

USB MINI - TYPE B
Material
- Insulator: LCP Rated UL94V-0
- Contacts: Phosphor Bronze
- Shell: Phosphor Bronze
- Pin Plated: Gold 3” over 50u” nickel
Electrical
- Current Rating: 1.0 AMPs Max.
- Contact Resistance: 30 mΩ Max.
- Insulator Resistance: 1000MΩ Min.
- Dielectric Withstanding Voltage: 500 VAC / Minute
Mechanical
- Mating Force: 3.0 Kg Max. (29.4N)
- Unmating Force: 0.5 Kg Min (4.9N)
- Contact Retention: 0.3 Kg / Pin Min. (2.94N)
- Operating Temperature: - 55°C ~ + 105°C
